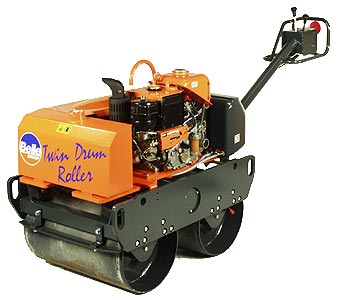

The high speed provides greater surface coverage, with progressive control on both forward and reverse for a smoother stop start. Both drums have been machined to avoid marking on hot asphalt mixes and the low centre of gravity guarantees stable and reliable operation.

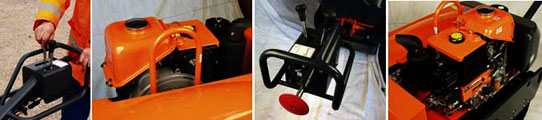

Features
- Complete hydrostatic drive with no drive chain and no exposed hydraulic hoses
- Hydrostatic motors and vibration drive give maximum compaction
- Electric start
- Strong steel handle with dead man safety control
- One point lifting
- Non corrosion sprinkler system
- Strong protective frame
- Narrow profile and less than 2cm wall clearance
- Easy access to hydraulic components and filter
- Excellent new generation of Kubota diesel engines
Specifications
- 5.5hp Kubota E75NB3 Diesel engine, electric start
- Weight 675kg
- Length 2385mm x width 700mm x height 1150mm
- Drum width 650mm x diameter 402mm
- Curb clearance 260mm
- Lateral overhang 25mm
- Height in storage 1800mm
- Forward travel speed 3.6 km/hr
- Reverse speed 2.5 km/hr
- Vibration frequency 55 Hz
- Centrifugal force 16kN
- Water tank capacity 35 litres
- Oil tank capacity 18 litres
Click here for instruction / parts manual
