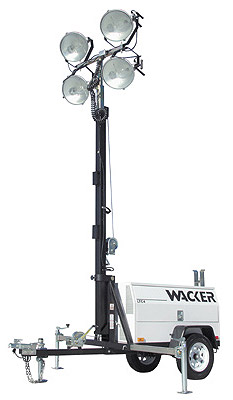

Wacker LTC 4L Lighting Tower

Heavy-duty, trailer-mounted light towers feature a compact and narrow body design for easy transport - two abreast on a flatbed truck. Distinctive elliptical light fixtures allow light to travel directly to the work area for brighter illumination. Each light can be individually adjusted without tools and a quick disconnect power cord allows for easy removal prior to transport. The 360-degree rotating mast allows for light adjustment while raised.

Specifications - Tower

• 4394mm long x 1778mm wide x 1600mm high
• Operating weight 807 kg
• Maximum tower height 8.8 m 29 ft
• Voltage 115 V
• Lamp Output 4 x 1000W metal halide heads
• Coverage (Lighting levels as recommended by IES) 30400 @ 5.4 lumens m2

  Generator
  • 11.4hp Lombardini diesel - 1500rpm
  • Output 5 kW
  • Sound level at max. load 67 (dB(A) at 7m)
  • Generator insulation H
  • Generator type Brushless
  • Amperage @ 120/240 V 43.5 A
  • Fuel tank capacity 114 litres
  • Fuel consumption 1.7 l/h

  Click here for parts list
