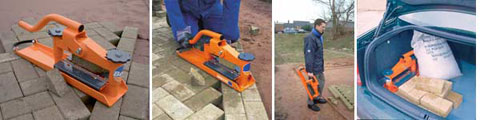

The first block splitter designed specifically for block
paving. The Minipave is the smallest and lightest
machine available for cutting standard 100mm x
200mm blocks. The Minipave is ideal for domestic
landscaping and small commercial jobs where
portability makes the operator's job quicker and easier.
- Safe and simple operation - makes beginners into
experts
- Works at floor level - faster working, you don't have
to get up to cut.
- Straight and accurate cutting - less wastage
- Four edge blade - increased expendable life
- Composite bearings - maintenance free operation
- Compact size - helps transportation and storage
- Lightweight - easy to handle
- Heavy duty - for the reliable service you expect from
Belle
- Cut force (with 20kg applied) 3200 kg - 31.4kN
- Blade type - 2 x 8mm square section - 250mm long
- Cam movement - block clearance 3mm - cutting
2mm
- Adjustment screws fast acting trapezoidal -
movement 40mm
- Block depth Maximum 87mm - minimum 47mm
- Weight 18kg
