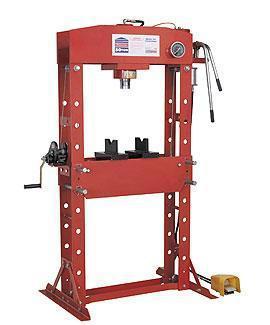

Air/Hydraulic Press 50ton Floor Type with Foot Pedal
Steel frame construction with side mounted air motor powering hydraulic pump unit. Sliding hydraulic ram assembly giving 250mm of lateral travel for off-centre pressing applications. Fitted with ram pressure gauge. Supplied with flat pressing plate/V-blocks.
Specifications
- Make: Sealey
- Model No: YK509FAH
- Bench or Floor Mounting: Floor
- Type: Air/Hydraulic
- Capacity: 50ton
- Ram Stroke: 200mm
- Extension Screw: -
- Lateral Ram Travel: 250mm
- Maximum Height - Ram to Table: 1042mm
- Minimum Height - Ram to Table: 62mm
- Table Aperture: 235/185mm
- Working Table Depth: 259mm
- Working Table Width: 730mm
- Overall Height: 1910mm
- Gauge Included: Yes
- Working Pressure: 108-123psi
- Air Consumption: 9cfm
- Weight: 302kg
