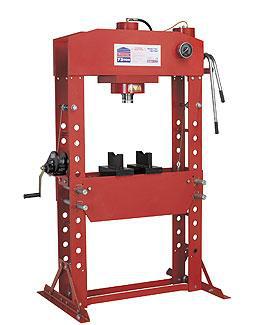

Hydraulic Press Premier 75tonne Floor Type
Steel frame construction with hydraulic pump unit. Sliding hydraulic ram assembly gives 285mm of lateral travel for off-centre pressing applications. Frame head fitted with ram pressure gauge. Supplied with flat pressing plate/V-blocks.
Specifications
- Make: Sealey
- Model No: YK759F
- Bench or Floor Mounting: Floor
- Type: Hydraulic
- Capacity: 75ton
- Ram Stroke: 250mm
- Extension Screw: -
- Lateral Ram Travel: 285mm
- Maximum Height - Ram to Table: 884mm
- Minimum Height - Ram to Table: 68mm
- Table Aperture: 251/201mm
- Working Table Depth: 279mm
- Working Table Width: 800mm
- Overall Height: 1923mm
- Gauge Included: Yes
- Working Pressure: -
- Air Consumption: -
- Weight: 436kg
