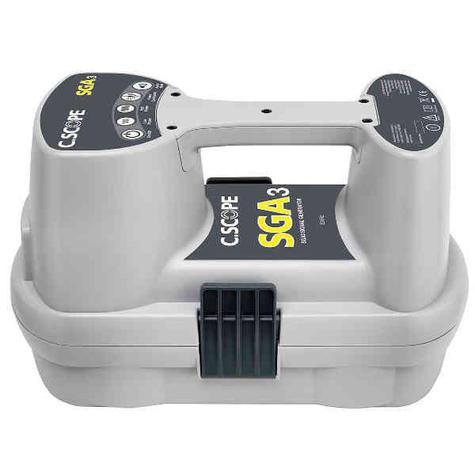

C.Scope SG-A Audible Signal Generator

C.Scope Signal Generators SG-A (A for Audio) and SG-V (V for Visual) are designed to operate in conjunction with the Cable Avoidance Tools in a wide variety of tracing applications.
A 33kHz signal can be applied to a pipe or cable and traced along its length using the Cable Avoidance Tool.
The C.Scope signal generators are new for 2005, with smart robust styling, extra features and all round greater operating efficiency resulting in longer battery life.

Controls

• On/off
• Low power/high power
• Pulse/continuous switch
• Audio mute

Connections

• Connection mode socket
• Connection mode earth socket

Audio Indications

• Audio feedback on button press
• Audio frequency drops to indicate a good connection
• Audio frequency on induced mode changes with power level
• Audio output pulsed to indicate pulsed mode
• Low battery indication
• Batteries - 4 x D cells (not supplied)
• Typical life (guide) 40 hours
• Weight 3.4kg

Railtrack approved
