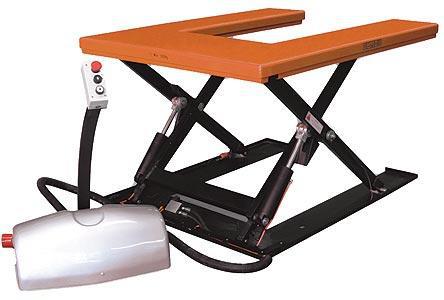

Low profile lift tables achieve a low closed height and
usually eliminate the need for a pit. They lift up to
around 860mm and also help alleviate bending and
twisting often found in industrial environments.
- Tables are controlled by a 24volt satellite hydraulic
power pack consisting of up, down and emergency
stop buttons
- Tables are powered by 3 phase, 380volt AC motors
- Pressure relief valve fitted to protect the hydraulic
system
- Oil less bushing on axle pivots
- Emergency check valve to ensure slow controlled
descent in the event of a hydraulic failure
- Removable lifting eyes
- Tables have fully interlocked descent arrestors in
case of obstruction
- Manufactured to EN1570:1999 and are IP54
protected
Specifications
- 1000kg capacity
- Maximum height 860mm
- Minimum height 85mm
- Platform 1450mm x 1140mm
- Lifting cycle 18 seconds
- Stroke 775mm
- Power pack 750 watt
- Net Weight 280kg
- 12 months on site parts and labour warranty
