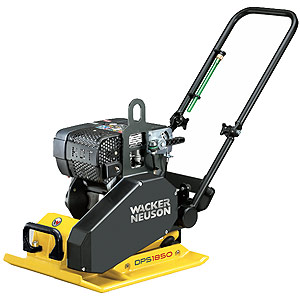

Wacker DPS1850 Diesel Plate Compactor

The vibratory plate with unlimited possibilities! The DPS 1850H Basic is not only an outstanding compaction all-rounder for soils, asphalt and pavements, but also a plate with unlimited possibilities. One has the choice of, for example, 2 different guide handles (for asphalt or soils). In addition to this the DPS 1850H Basic can be equipped with a water tank, a protective frame or a transport device as an option. And naturally there is also the paving stone glider pad available as an accessory.

Specifications

• Operating weight 110 kg
• Working width 500 mm
• Machine height 620 mm
• Working height of handle (adjustable) 838 - 1.093 mm
• Base plate thickness 8 mm 0.31 in
• Max. centrifugal force 18 kN 4.050 lb
• Vibration frequency 90 Hz
• Forward speed 22 m/min
• Gradeability 30 %
• Compacted area (depending on soil) 660 m2/h
• Drive engine air-cooled single cylinderHatz 1B20 diesel engine
• Fuel consumption 1,0 l/h
• Tank capacity 3 l
• Max. allowable tilt of engine in continuous operation 30 °
• Power Train from drive engine via centrifugal clutch and V-belt directly to the Exciter

Features and Benefits

• Highest degree of operator comfort thanks to the specially advantageous location of the throttle lever as well as the patented vibration neutralization of the height-adjustable guide handle.
• Especially wear and fracture resistant base plate, even during continuous load applications, manufactured out of extremely resistant nodular cast iron (GJS-700).
• Maintenance-free and load-resistant exciter bearings designed for long term applications at high temperatures (asphalt compaction).
• Extremely long-life Hatz diesel engines with dry-type air filter for dust protection.

HAV rating - 3.0 (8 hours maximum daily use)
