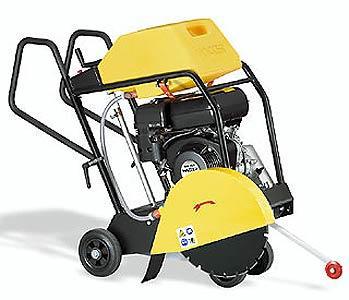

Ideally suited for a wide variety of applications The Basic floor saw is ideal for all standard cutting applications. Most of the cutting tasks on the job site can be taken care of with versatility and without complications. The simple, well thought-out design combines high performance with easy handling, allowing for a variety of applications without problems.
Specifications
- Length x width x height (without extension arm) 1.160 x 583 x 1.078 mm
- Length x width x height (guide handle in transport position) 801 x 583 x 966 mm
- Weight 95 kg
- Max. disc diameter 450 mm
- Arbor diameter 25,4 mm
- Nominal blade speed 2.200 1/min 2,200 rpm
- Peripheral blade speed at Ø 350 40,3 m/sec 132 ft/sec
- Peripheral blade speed at Ø 400 46,1 m/sec 151 ft/sec
- Peripheral blade speed at Ø 450 51,8 m/sec 170 ft/sec
- Max. cutting depth 175 mm
- Tank capacity (water) 32 litres
- Honda GX390 - 13hp petrol engine with automatic oil shut-off
- Fuel consumption 4.3 l/h
- Tank capacity (fuel) 6.5 litres
- Power Train from engine via belt to cutting shaft
- Recoil starter
- The unique, ergonomic handle system makes individual adjustments of the handle width and height possible, thus allowing for optimum operator control of the machine. Extremely high cutting performance with a cutting depth of 175 mm (7”) when using a 450 mm (18”) cutting blade. The water tank puts pressure on the cutting blade, thus making for very stable cuts.
- The Basic is so light that it can be easily lifted by two people.
- The central lifting point, integrated in the durable protective cage, plus the foldable guide handles make transporting the machine extremely easy.
- Unit features large, removable, 32 litre (7 gallons) capacity water sprinklers on both sides of cutting blade
- Vibration magnitude 6.9ms2
This machine is supplied without a blade (will take 14'' or 18'')
