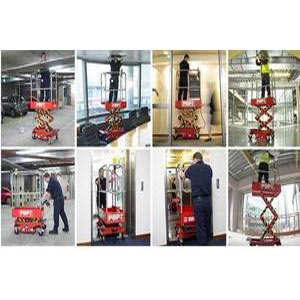

Popup Electric Work Platform

POP-UP replaces the need for ladders and steps to be used indoors in low level access environments. Its detailed design means that it can offer a multitude of special features that ensure the user has a safe yet simple solution to low level access.

Pop-Up has been designed, manufactured and tested in accordance with both the European Standard EN280 and the safety requirements of the European Machinery Directive 98/37/EC.

Features

• Immediate low level access in 8 seconds
• Fully stable safe working load of 240 kgs
• Platform height 1.63 mtrs, working height 4.00 mtrs
• Fits through standard doorways and into passenger lifts
• Battery powered elevation with inbuilt variable charger 110 and 240 volt
• Over 300 lifts on one charge
• Simple hand set controls
• No formal training required

Specifications

• Safe working load (SWL) 240 kg - Equivalent to 1 person + 160 kg tools and materials
• Maximum platform height 1.63 metres
• Maximum working height 3.63 metres
• Platform length 1.01 metres
• Platform width 0.52 metres
• Platform guard rail height 1.10 metres
• 12 volt DC Motor 0.7 kW, Battery 80Ah with built-in charger
• Hydraulic system - Maximum pressure 250 bar
• Reservoir capacity 1 litre
• Raise 8 seconds
• Lower 8 seconds
• Approx number of lifts 300 (fully charged with SWL)
• Stowed dimensions length 1135mm x height 1636mm x 700mm
• Weight 215Kg
