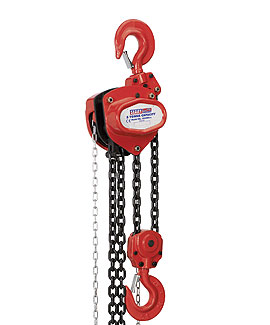

Tested and certified to HSE specifications. Fitted with heat treated and ground, triple-spur geared shaft and pinion. Also includes mechanical load brake for extra safety. All chains are manufactured from hardened alloy material and load hooks feature safety latches. Compact gear housing allows use where headroom is limited.
Specifications
- Model No: CB5000
- Safe Working Load: 5000kg
- Test Load: 6250kg
- Standard Lift: 3.0mtr
- Load Chain Diameter: 10.0mm
- Pulling Effort: 42kg
- Head Room: 588mm
- Overall Width: 173mm
- Overall Depth: 216mm
- Hook Aperture: 52mm
- Maximum Hook Capacity Ø: 65mm
- Weight: 39.0kg
List price £719.63
