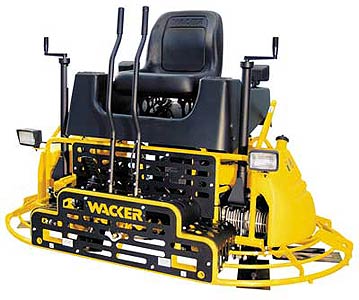

Features
- Compact frame provides easy access to the slab edges.
- Correct power-to-weight ratio and an ergonomically designed twin lever control reduces the amount of force needed to control the unit, while still providing excellent manoeuvrability and feedback from concrete conditions for better floating and high production finishing jobs.
- Front and rear lighting system (4 lights standard) provides accuracy and better visability on dimly lit jobsites.
- Precision manufactured gearbox drive system transfers maximum torque to the rotors and maintains years of trouble-free operation.
- Standard heavy-duty gearboxes offer dual output shaft oil seals, eliminating oil leaking onto slab. A standard spray retardant system allows operator to safely rectify problem areas.
- This operator-friendly machine features a sliding, adjustable operator's seat for reduced fatigue and greater comfort. It also offers cup holders, accessory outlet and low step-up height for added convenience.
- 2032mm long x 1170mm wide x 1330mm high
- Blade size (l x w) finish 35mm x 15mm
- Operating weight 383 kg
- Trowelling width (non-overlapping) 1.945mm
- Trowelling width (overlapping) 2020mm
- Trowelling area (nonoverlapping) 1.8 m2
- Troweling area (overlapping) 2 m2
- Maximum rotor speed 35-150 rpm
- Pitch range 0-25°
- Honda 24hp twin cylinder, petrol engine with electric start
- Fuel consumption 9,0 l/h
- Fuel tank capacity 24.6 litres
