Air Compressor Hyundai HY3200S 200L 3hp "Pro Series" Electric Belt Drive

Air Compressor Hyundai HY3200S 200L 3hp "Pro Series" Electric Belt Drive Product code: HYU1251 This item is temporarily unavailable. £537.08  Inc. VAT and mainland UK delivery
Ask a Question
Enter your details and we will get back to you

Product Information

Unfortunately, delivery is currently 3-5 working days due to the present COVID-19 Situation.

Next Day Deliveries will resume as soon as logistically possible.

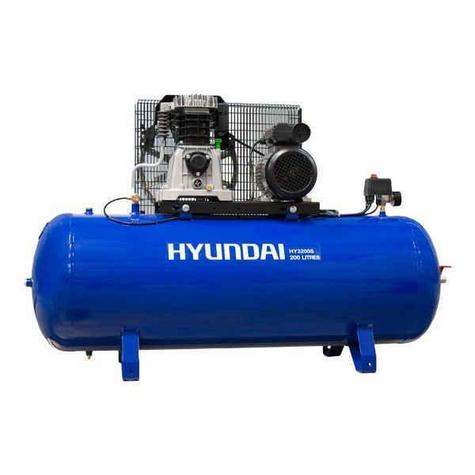

Hyundai 200L 3hp "Pro Series" Electric Air Compressor Belt Drive

The HY3200S is part of the Hyundai "Pro Series" air compressor range for professional and commercial users, built to tackle the toughest requirements on a daily basis. Equipped with a large 200L rolled steel air tank, this heavy duty air compressor has the capacity needed for powering mechanical, industrial and workshop tasks. It's powered by a 3hp 230v electric motor and benefits from a belt drive system, which provides efficient, quiet and cool performance.

The HY3200S produces a maximum pressure output of 145psi / 10bar with a displacement of 14cfm, making it the ideal choice for professional users who have demanding air-powered tools. With a tough cast iron cylinder block, this air compressor is built to last and conforms to all of the latest European Standards.

With a net weight of 110kg, the HY3200S is a large air compressor and is ideal for mechanics or engineers who need to carry out repairs in the field.


  • Model no: HY3200S
  • Voltage (V): 230.00
  • Phase: Single
  • Frequency (Hz): 50.00
  • Motor Power (hp/kW): 3 / 2.2
  • Rated Motor Speed (rpm): 1000.00
  • Maximum Pressure (PSI/Bar): 145 / 10
  • Cut-Out Pressure (PSI/Bar): 145 / 10
  • Cut-In Pressure (PSI/Bar): 116 / 8
  • Tank Capacity (L): 200.00
  • Free Air Delivery (CFM - L/min): 8.76 / 400
  • Displacement (CFM - L/min): 14 / 398
  • Air Outlet: Direct
  • Outlet Pressure Regulation Type: 1/2" F
  • Drive Type: Belt
  • Standard Delivery: 1 – 2 days
