Air Compressor Hyundai HY75270-3 5.5kW / 7.5 HP 3 Phase

£1680.97
Air Compressor Hyundai HY75270-3 5.5kW / 7.5 HP 3 Phase Product code: HYU1171 £1680.97  Inc. VAT and mainland UK delivery
Ask a Question
Enter your details and we will get back to you

Product Information

HYUNDAI

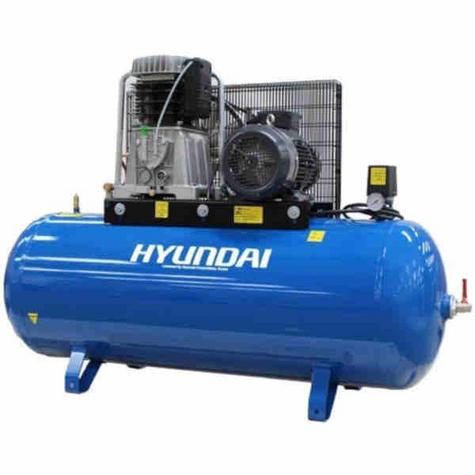

Hyundai 5.5kW / 7.5 HP Air Compressor HY75270-3

The HY75270-3 is a heavy-duty industrial and professional three phase air compressor, built with the highest quality components to provide unbeatable performance. This air compressor benefits from the powerful 7.5hp engine and produces 29 CFM from its large 270 litre rolled steel air tank.

The heavy duty motor has built-in overload protection, it’s fitted with aerodynamic flywheels for efficient cooling and the twin cylinder pump has a slow running, 3 phase motor, for lower noise levels and increased life expectancy.

The cast iron cylinder block is designed to last and the air receiver is built to the latest European Standards 09/105 CE.

Specifications

  • Model no: HY75270-3
  • Gross Weight (kg): 150.00
  • Voltage (V): 400.00
  • Phase: 3.00
  • Frequency (Hz): 50.00
  • Motor Power (hp/kW): 7.5/5.6
  • Rated Motor Speed (rpm): 2800.00
  • Maximum Pressure (PSI/Bar): 145/10
  • Cut-Out Pressure (PSI/Bar): 120/8.3
  • Cut-In Pressure (PSI/Bar): 87/6
  • Tank Capacity (L): 270.00
  • Free Air Delivery (CFM - L/min): 21/595
  • Displacement (CFM - L/min): 29/821
  • Air Outlet: Valve Tap/½" BSP
  • Outlet Pressure Regulation Type: Fixed
  • Drive Type: Belt
  • Overall Dimensions L x W x H (mm): 1600 x 500 x 1040
  • Tank Material: Rolled steel
  • Standard Delivery: 1 – 2 days

Warranty Info: 3 Year Platinum Warranty
