Automotive Analyser Sealey TA102 Digital

Automotive Analyser Sealey TA102 Digital Product code: SEA2496 £62.90  Inc. VAT and mainland UK delivery
Ask a Question
Enter your details and we will get back to you

Product Information

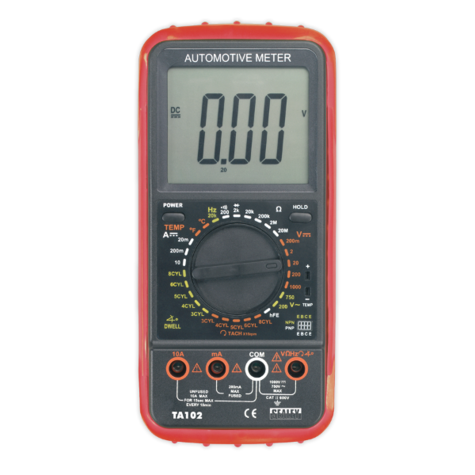

Digital Automotive Analyser

  • Durable bi-composite case and integral stand suitable for the toughest workshop conditions.
  • Large, hi-contrast LCD display with 34mm high digital read-out.
  • Includes over-range indication, auto-zeroing, data-hold, auto-polarity, auto-power-off and low battery display functions.
  • Supplied with capped test probes and K-type thermocouple.


    • Make: Sealey
    • Model No.: TA102
    • Tach (rpm): 3, 4, 5, 6, 8Cyl 180-10000 (x10)rpm
    • Dwell: 3Cyl 0-120°, 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°
    • Voltage DC: 200mV, 2V, 20V, 200V, 1000V
    • Voltage AC: 200-750V
    • Current DC: 20mA, 200mA, 10A
    • Frequency: 20kHz
    • Resistance: 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 20MΩ
    • Continuity, Audible: <30Ω
    • Temperature: -20 to +750°C/-4 to +1382°F
    • Diode Check: Typical Test Current 1mA
    • Transistor Test (hFE): Vce=3V, Ib=10µA
    • Digit Height: 34mm
    • Batteries (included): 9V (PP9)
    • Size (L x W x D): 200 x 97 x 48mm
    • Weight: 495g
    • For Warranty see: Sealey Warranties
    • Standard Delivery: 2-3 days
