Automotive Analyser Sealey TA201 Digital

£84.50
Automotive Analyser Sealey TA201 Digital Product code: SEA2498 £84.50  Inc. VAT and mainland UK delivery
Ask a Question
Enter your details and we will get back to you

Product Information

Sealey

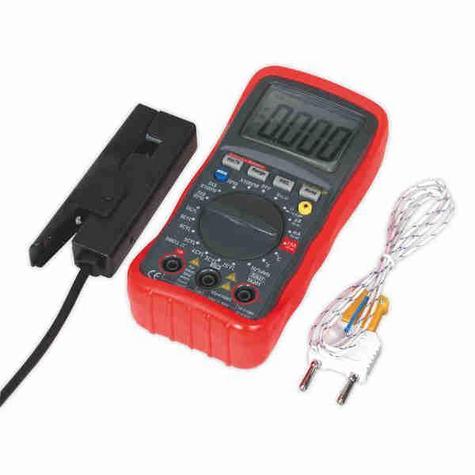

Digital Automotive Analyser 13 Function with IC

  • Compact size meter with four-digit 22mm, high contrast LCD display and backlight.
  • Features auto-ranging, data hold and auto-power-off functions.
  • Includes Inductive Coupler (IC) for fast reading of engine rpm.
  • Supplied with probe, crocodile clip and thermocouple leads for easy hook-up.
  • Low Battery Indicator
  • Display Hold
  • Hi-Impact Case

Specifications

    • Make: Sealey
    • Model No.: TA201
    • Tach (rpm): 4-Stroke 600-4000 (x1)rpm, 600-12000 (x10)rpm, 2-Stroke 300-4000 (x1)rpm, 300-6000 (x10)rpm
    • Dwell: 2Cyl 0-180°, 3Cyl 0-120°, 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°, 10Cyl 0-36°
    • Voltage DC: 400mV, 4V, 40V, 400V, 600V (Auto-ranging)
    • Voltage AC: 400mV, 4V, 40V, 400V, 600V (Auto-ranging, except 400mV)
    • Current DC: 400µA, 4000µA, 40mA, 400mA, 4A, 10A (Auto-ranging for µA & mA)
    • Current AC: 400µA, 4000µA, 40mA, 400mA, 4A, 10A (Auto-ranging for µA & mA)
    • Capacitance: 40nF, 400nF, 4µF, 40µF, 100µF (Auto-ranging)
    • Frequency: 4V Range 5Hz-10kHz, 40 & 400V Ranges 5Hz-200kHz, 600V Range 50Hz-1kHz, 400mA Range 5Hz-5kHz, 10A Range 5Hz-1kHz
    • Duty Cycle: 0.1-99.9%
    • Resistance: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ (Auto-ranging)
    • Continuity, Audible: <150Ω
    • Temperature: -20 to +760°C/-4 to +1400°F
    • Diode Check: Typical Test Current 0.3mA
    • Digit Height: 22mm
    • Batteries (included): 9V (PP9)
    • Size (L x W x D): 146 x 66.2 x 41.5mm
    • Weight: 330g
    • For Warranty see: Sealey Warranties
    • Standard Delivery: 2-3 days
