Cable Avoidance Locator C.Scope MXL4-D Data Logging
Some C.Scope Products have a long delivery time. Please contact us for information BEFORE ordering.

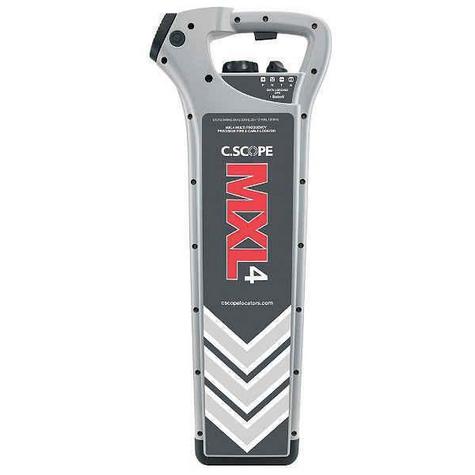

The MXL4-D is a dual-frequency (33+131kHz) Cable Avoidance Tool with Data Logging.
Bluetooth™ connectivity & GPS options available.
Designed for use with an MXT4 Signal Generator.
Network Rail Approved.
- Product name: MXL4-D Cable Avoidance Tool
- Part No. MXL4-D
- On/Off switch under handle
- Function select switch - P-power, R-radio, G-Generator Mode, A-Allscan Mode
- Sensitivity control
- Push button for live display of depth
- Push button for live display of transmitter current
- Push button for transmitter mode frequency selection
- Removable and user replaceable loudspeaker module
- Multi segment LCD for: Signal Stregth, Mode Selected, AlarmZone, Battery Condition, Self Test Indicator. Frequency selected, Depth measurement, Signal current measurement in transmitter mode.
- Data Logging: Internal capacity for storing over 12 months of data (in normal use) logged once per second.
- Data logged includes: Time/Date, Mode Sensitivity level, Received signal level, Frequency, Depth, Self test result, Swing Indicator,
- Transmitter mode frequencies: Simultaneous 131,072Hz and 32,768Hz. 131,072Hz, 32,768Hz , 8192Hz, 640Hz, 512Hz
- Weight including batteries 2.65kg
- Dimensions: 720mm x 280mm x 65mm
- Locate Accuracy: better than 10% of depth
- Depth Measurement Range: Line 0.2m to 9.99m
- Depth Resolution: Line 0.01m
- Depth Measurement Range: Sonde 0.1m to 9.99m – depending on Sonde type
- Depth Resolution: Sonde 0.1m
- Battery Type: Internal 8 x ‘AA’ (LR6) cells (either alkaline non-rechargeable or NiMH rechargeable)
- Battery life: 40 hours intermittent use at 20ºC (68ºF) using alkaline cells
- IP Rating: 65
- Network Rail Approved
