Cable Avoidance Tool C.Scope DXL3 with Depth Measuring

£558.17
Cable Avoidance Tool C.Scope DXL3 with Depth Measuring Product code: CSC1002 £558.17  Inc. VAT and mainland UK delivery
Ask a Question
Enter your details and we will get back to you

Product Information

C.Scope Made in Britain

Some C.Scope Products have a long delivery time. Please contact us for information BEFORE ordering.

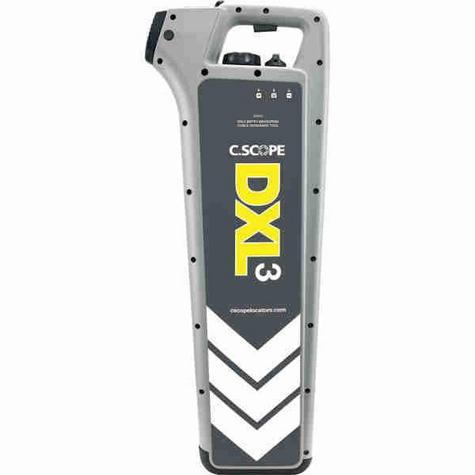

The C.Scope DXL3 depth measuring Cable Avoidance Tool is a robust and affordable industry standard locator used to detect buried pipes and cables prior to excavation.

More Information

Specifications

  • Product name: DXL3 Cable Avoidance Tool
  • Part No. DXL3CAT
  • On/Off switch under handle
  • Function select switch - P-power, R-radio, G-Generator Mode
  • Sensitivity control
  • Push Button for live display of depth
  • Removable and user replaceable loudspeaker module
  • Multi segment LCD for Signal Stregth, Mode Selected, Battery Condition, Depth measurement
  • Weight including batteries 2.9kg
  • Dimensions: 720mm x 270mm x 63mm
  • Locate Accuracy: better than 10% of depth
  • Depth Measurement Range: Line 0.2m to 3m
  • Depth Resolution: Line 0.05m
  • Depth Measurement Range: Sonde 0.85m to 4.5m – depending on Sonde type
  • Depth Resolution: Sonde 0.15m
  • Battery Type: Internal 8 x ‘AA’ (LR6) cells (either alkaline non-rechargeable or NiMH rechargeable)
  • Battery life: 40 hours intermittent use at 20ºC (68ºF) using alkaline cells
  • IP Rating: 65
