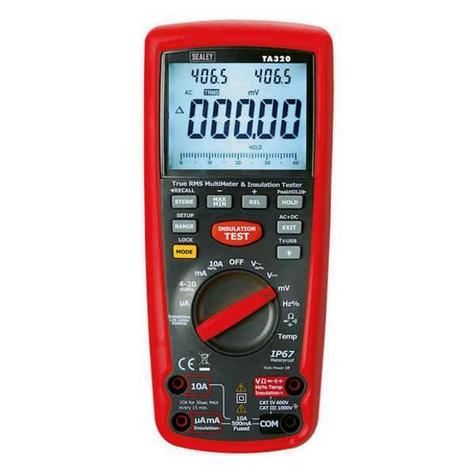

Digital Automotive Analyser Sealey TA320 Insulation Tester - Hybrid Vehicles

£359.33
Digital Automotive Analyser Sealey TA320 Insulation Tester - Hybrid Vehicles Product code: SEA1074 £359.33  Inc. VAT and mainland UK delivery
Ask a Question
Enter your details and we will get back to you

Product Information

Sealey

Digital Automotive Analyser/Insulation Tester - Hybrid Vehicles

  • Specially designed for hybrid vehicles and conforms to EN61010 CAT III (1000V) and CAT IV (600V)
  • Unlike other multimeters this unit has an insulation test function that allows testing of the insulation of the high voltage wires found on hybrid vehicles.
  • Can be used as a stand-alone device or linked wirelessly with a USB interface to a PC or laptop enabling results to be graphed, saved or printed.
  • Supplied with high voltage probes, thermocouple and wireless USB cable.
  • The unit also has the usual functions expected on a high quality multimeter including true RMS (Root-Mean-Square) and IP67 waterproof rating.

Specifications

    • Make: Sealey
    • Model No.: TA320
    • Nett Weight: 700g
    • Tach (rpm): No
    • Dwell: No
    • AC Voltage: 400mV, 4V, 40V, 400V, 1000V
    • DC Voltage: 400mV, 4V, 40V, 400V, 1000V
    • AC Current: 400µA, 4000µA, 40mA, 400mA, 10A
    • DC Current: 400µA, 4000µA, 40mA, 400mA, 10A
    • Capacitance: 40nF, 400nF, 4µF, 40µF, 400µF, 4000µF, 40mF
    • Frequency: 40Hz - 10KHz
    • Duty Cycle: 0.1-99.9%
    • Pulse Width: 100µs-100ms
    • Resistance: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ
    • Continuity: <35Ω
    • IR Temperature: No
    • Insulation Test: 125V, 250V, 500V, 1000V
    • Diode Check: Yes
    • Transistor Test: No
    • Back Light: Yes
    • Bar-Graph Display: Yes
    • Display Hold: Yes
    • Auto-Ranging: Yes
    • Inductive Coupler: No
    • PC Interface: Yes
    • Digits Height: 20mm
    • Auto Power Off: Yes
    • Low Battery Indicator: Yes
    • Batteries (supplied): 6 x 1.5V AA
    • Hi-Impact Case: Yes
    • Size (L x W x D): 220 x 95 x 56mm
    • Weight: 700g
    • PC Compatibility: Windows 2000, XP, Vista, Win7
    • Standard Delivery 1-2 Days
    • Warranty see: Sealey Warranties
