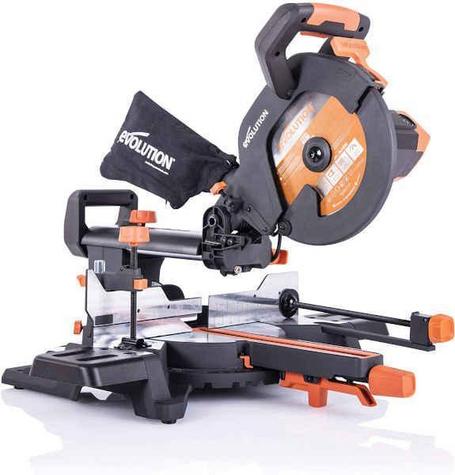

Evolution R255SMS+ 255mm Sliding Mitre Saw 110volt

• Multi-Material cutting technology. One saw, one blade, cuts all.*, one blade cuts all.
• Accurate cutting with 300mm sliding functionality, adjustable depth of cut and laser precision guidance.
• Smooth, square, reliable cutting every time in a variety of materials.
• Powerful 2000W (240v) / 1600W (110v) hi-torque, optimised gearbox and blade system increases motor and blade life to cut through a variety of materials with ease.
• Clean & consistent smooth cutting to within +/- 0.5˚ with 0° - 45° bevel tilt and 50˚ - 50˚ mitre angles with quick click mitre stops at 0˚, 15, 22.5, 30, and 45˚ both left & right.
• Slice through skirting boards, cornices, boards, decking and more up to 300mm x 80mm.
• Ambidextrous, ergonomic, horizontal trigger with comfortable grip = combats repetitive strain.
• Compatible with Evolution's Mitre Saw Stand allows you full control to cut accurate repeated lengths on wide and long materials with ease.
• The Evolution 255mm Diamond blade can also be fitted for cutting ceramic tiles and ornamental stone, (sold separately).
• 3 Year limited warranty.
• Premium Japanese Tungsten-Carbide-Tipped (TCT) 255mm blade included for long-life, multi-material cutting.
• Dual Quick-Release clamps included for additional accuracy & faster adjustments.
• Slide rail protector included protects against damage & prevents dust ingress.
• Cleaner & safer working environment with dust collection bag & dust port adaptor for use with vacuum extraction.
• Integrated carry handles - easy to carry & transport around the workplace.
• 3m power cable reduces the need for extension leads.

Specifications:

• Model No. 052-0001A
• Motor (110V 50Hz):1600W
• Speed No Load:2500 rpm
• Max.Bevel (Left):45°
• Max. Mitre:50° - 50°
• Cable Length:3m
• Dust port diameter: 36mm
• Blade: Dia. 255mm, No. of Teeth:28, Bore:25.4, mmKerf:2mm
• Max.Cross Cut (0° x 0°):300mm x 80mm
• Max. Bevel Cut (0° x 45°):300mm x 45mm
• Max. Mitre Cut (45° x 0°):210mm x 80mm
• Max. Compound Cut (45° x 45°):210mm x 45mm
• Mild Steel Plate (Max. Thickness):6mm
• Mild Steel Box Section(Max. Wall Thickness):3mm
• Product Dimensions:360mm x 705mm x 730mm
• Packaging Dimensions:365mm x 565mm x 520mm
• Product Weight:15.3 kg
• Packaged Weight:18.5 kg
• Sound Pressure Level L_PA:110V: 95.8dB(A)
• Sound Power Level L_WA:110V: 108.8dB(A)
