Evolution RAGE3-B 210mm Compound Mitre Saw 230V

Evolution R210CMS 210mm Compound Mitre Saw 230V Product code: EVO1149 £92.27  Inc. VAT and mainland UK delivery
Ask a Question
Enter your details and we will get back to you

Product Information

evolution build logo

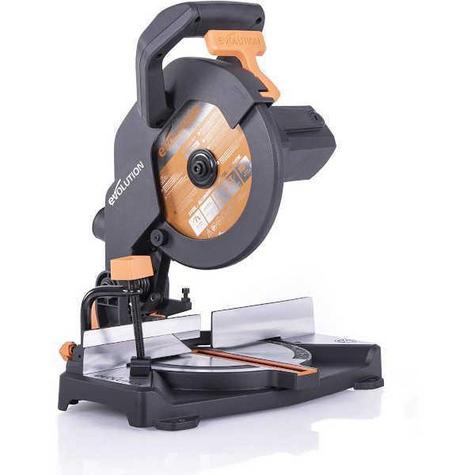

Evolution R210CMS - 210mm Compound Mitre Saw 230V

  • Multi-Material cutting technology. One saw, one blade, cuts all.
  • Accurate cutting with 0˚ - 45˚ bevel tilt and 45˚ - 45˚ mitre angles.
  • Reliable, smooth, square cut every time in a variety of materials.
  • Powerful 1200W hi-torque motor with optimised gearbox & blade system.
  • ompact, lightweight & robust design, weighing only 5.8kg. Easy to carry with one hand and stare away taking up very little space.
  • 125mm x 55mm max. cross cut capacity.
  • Positive mitre stops both left & right at 0˚, 15, 22.5, 30, and 45˚ covers all common cutting angles accurately and reliably.
  • Ergonomic trigger handle designed for left and right-handed use.
  • Compatible with the Evolution Mitre Saw Stand (Sold Separately).
  • Japanese Tungsten-Carbide-Tipped (TCT) 210mm blade included.
  • 3 Year limited warranty.


  • Model No. 046-0001A
  • Motor (240V 50Hz):1500W
  • Speed No Load:3750 rpm
  • Max.Bevel (Left):45°
  • Max. Mitre:45° - 45°
  • Cable Length:2m
  • Blade: Dia. 210mm, No. of Teeth:20, Bore:25.4, mmKerf:1.7mm
  • Max.Cross Cut (0° x 0°):125mm x 55mm
  • Max. Bevel Cut (0° x 45°):125mm x 35mm
  • Max. Mitre Cut (45° x 0°):85mm x 55mm
  • Max. Compound Cut (45° x 45°):85mm x 35mm
  • Mild Steel Plate (Max. Thickness):6mm
  • Mild Steel Box Section(Max. Wall Thickness):4mm
  • Product Dimensions:260mm x 393mm x 381mm
  • Packaging Dimensions:420mm x 290mm x 310mm
  • Product Weight:5.8 kg
  • Packaged Weight:7.2 kg
  • Sound Pressure Level LPA:220-240V: 97.14dB(A)
  • Sound Power Level LWA:220-240V: 109.02dB(A)
  • Standard Delivery: 1-3 working days
