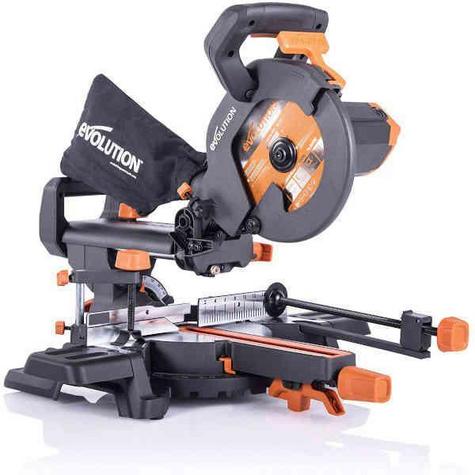

Evolution RAGE3-S 210mm Sliding Mitre Saw 110V
Ask a Question
The Evolution F210SMS is a multi material Sliding Mitre Saw using one blade for steel, wood, plastic etc. - 110volt
- Multi-Material cutting technology. One saw, one blade, cuts all
- Accurate cutting with laser guidance, adjustable depth of cut and 9 positive mitre stops.
- Reliable, smooth, square cut every time in a variety of materials.
- Powerful 1200W hi-torque motor with optimised gearbox & blade system.
- Sliding functionality provides a 230 x 65mm cross-cut capacity, allowing you to glide through materials with ease.
- Positive mitre stops both left & right at 0˚, 15, 22.5, 30, and 45˚.
- Ergonomic trigger handle designed for left and right-handed use.
- Connect this with Evolution's Mitre Saw Stand, to give you the freedom to perform repeated length cutting on wide and long materials with precision.
- The Evolution 210mm Diamond blade can also be fitted for cutting ceramic tiles and ornamental stone, (sold separately).
- Japanese Tungsten-Carbide-Tipped (TCT) 210mm blade included.
- Model No.084-0002A
- Motor (240V 50Hz):1200W
- Speed No Load:3750 rpm
- Max.Bevel (Left):45°
- Max. Mitre:50° - 50°
- Cable Length:2m
- Blade: Dia. 210mm, No. of Teeth:20, Bore:25.4, mmKerf:1.7mm
- Max.Cross Cut (0° x 0°):230mm x 65mm
- Max. Bevel Cut (0° x 45°):230mm x 38mm
- Max. Mitre Cut (45° x 0°):150mm x 65mm
- Max. Compound Cut (45° x 45°):150mm x 38mm
- Mild Steel Plate (Max. Thickness):3mm
- Mild Steel Box Section(Max. Wall Thickness):3mm
- Product Dimensions:314mm x 575mm x 610mm
- Packaging Dimensions:420mm x 290mm x 310mm
- Product Weight:10.9 kg
- Packaged Weight:12.8 kg
- Sound Pressure Level LPA:110V: 95.7dB(A)
- Sound Power Level LWA:110V: 108.7dB(A)
- Standard Delivery: 1-3 working days
