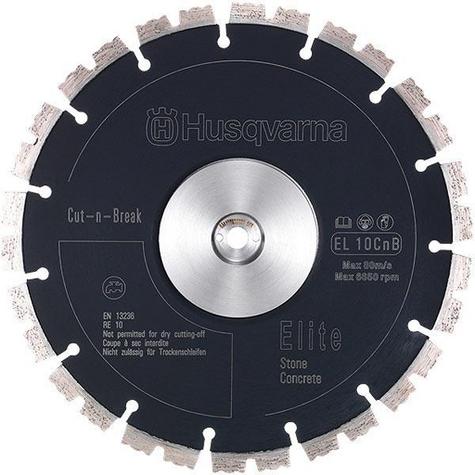

General Purpose Diamond Blades Husqvarna EL10CNB 230mm x 2
Ask a Question
230mm x 2 General Purpose Diamond Blades
- Blades for cured concrete with medium-hard to hard aggregate.
- The U-shaped segment design improves cooling and slurry transportation, for better blade speed and longer blade life.
- The innovative self sharpen segment design gives blades that cuts with a maximum speed from first cut.
- Supplied in pairs.
- Optimal performance on natural stone and hard concrete.
- Occasional use on medium concrete and brick.
- Make: Husqvarna
- Part No.: 574836201
- Type: Wet
- Power Range: 1.8-3.7kW / 2.41-4.96hp(I)
- Blade Diameters: 230mm/230mm / 9''/9''
- Geometry: Segmented
- Segment Shape: Elite
- Segment No.: 15 x 2
- Segment Configuration: Narrow Notched (N)
- Assembly: Laser welded
- Segment Height: 10.5mm / 0.41''
- Segment Base: 2mm / 0.08''
- Segment Length: 40mm / 1.57''
- Segment Width: 2.4mm / 0.09''
- Diamond Depth: 8.5mm / 0.33''
- Suitability: K760 Cut-n-Break, K3000 Cut-n-Break
