Product Information

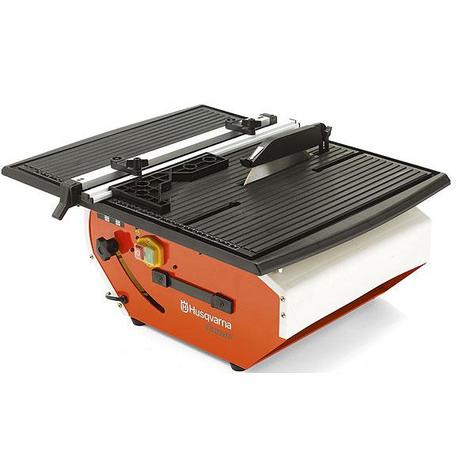

Tile Saw 110V

• Light but robust tile saw for professional use.
• The TS230F has a powerful electric motor and unique, patented water recovery system for long shifts.
• Blade shaft wrench and angle cut guide supplied as standard.
• Removable water tank makes cleaning and refilling easier.
• Quality continuous rim diamond blade supplied with the machines.
• All spindle diameter 25.4mm and 230mm blade size for all machines.
• Extended cutting autonomy, thanks to the water recovery channels.
• Patented 45° cut system (no pump needed).
• High precision as material stays flat when 45° cut is made.
• Easy to clean, very large cutting table.
• Patented rigid cutting guide with fine adjustment.

Specifications

• Make: Husqvarna
• Part No.: 965153602
• Power Output: 0.8kW
• Voltage: 110V
• Phases: 1
• Wet/Dry Cutting: Wet
• Bore Size: 25.4mm / 1''
• Blade Diameter: 230mm / 9.1''
• Cutting Depth: 46mm / 1.81''
• Sound Pressure Level: 64dB(A)
• Sound Power Level LWA: 75dB(A)
• Hand/Arm Vibration (Aeq): 1m/s
• Size (L x W x H): 720 x 550 x 310mm / 28.4 x 21.7 x 12.2''
• Weight: 16.5kg / 36.7lbs

Supplied with 1 x Elite-cut GS2 230mm Diamond Cutting Blade.
