Product Information

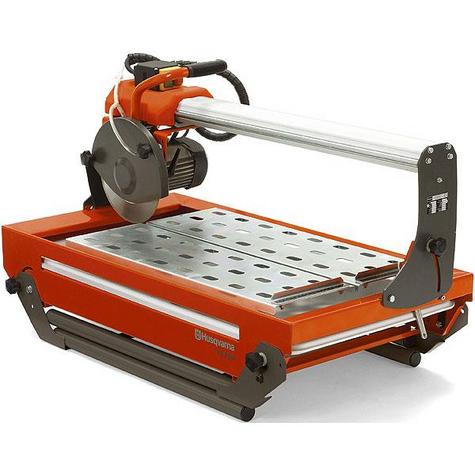

Tile Saw 110V

• Professional rail tile saw with guide rail for cutting large tiles.
• Durable, low maintenance guide rail system, with excellent cutting precision.
• Blade shaft wrench and angle cut guide supplied as standard.
• Removable water tank makes cleaning and refilling easier.
• High precision rail saw with unique long-life rail system.
• Smart Pump, the patented self-cleaning pump system dramatically increases the water pump’s service life.
• Plunge cut and bevel cuts (from 45 to 90°).
• 730 mm cutting length (to cut a 50 × 50cm tile diagonally).
• Folding legs and removable water tray, for easier cleaning and transport.

Specifications

• Make: Husqvarna
• Part No.: 965153801
• Power: 1kW
• Voltage: 110V
• Phases: 1
• Wet/Dry Cutting: Wet
• Bore Size: 25.4mm / 1''
• Blade Diameter: 230mm / 9.1''
• Cutting Depth: 50mm / 2''
• Cutting Length: 730mm / 28.7''
• Sound Pressure Level: 66dB(A)
• Sound Power Level LWA: 66dB(A)
• Hand/Arm Vibration (Aeq): 2m/s
• Size (L x W x H): 1070 x 590 x 650mm / 42.1 x 23.2 x 25.6''
• Weight: 47kg / 104lbs

Supplied with 1 x Elite-cut GS2 230mm Diamond Cutting Blade.
