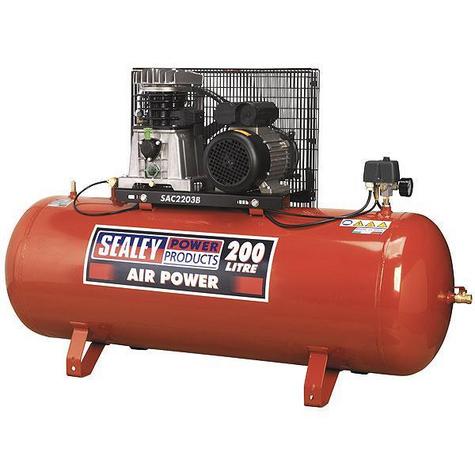

Sealey SAC2203B 200ltr Belt Drive Compressor
Ask a Question
Compressor 200ltr Belt Drive 3hp with Cast Cylinders
- Our top of the range single phase 200ltr compressor, this unit is suitable for the professional workshop and is fitted with a genuine 3hp motor.
- Twin capacitors and a centrifugal switch aid trouble free start up on a good 13Amp supply.
- However on this model we recommend fitting a 16Amp plug and connecting to a 20Amp supply protected by a type C circuit breaker.
- Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long life.
- Heavy-duty drive guard protects belt and flywheel that is designed to force air over the pump to aid cooling.
- Supplied with full CE certification, test certificates and operation/maintenance manual.
- Make: Sealey
- Model No.: SAC2203B
- Motor Output: 3hp
- Voltage/Phase: 230V - 1ph
- Rated Supply: 13A
- Speed: 1280rpm
- Air Displacement cfm(ltr/min): 15(425)
- Maximum Free Air Delivery cfm(ltr/min): 10.9(309)
- Maximum Pressure: 145psi/10bar
- Receiver Capacity: 200ltr
- Dimensions (W x D x H): 1440 x 440 x 900mm
- Weight: 97kg
