Sealey SAC42055B 200ltr Belt Drive Compressor

Compressor Sealey SAC42055B 200ltr Belt Drive 3-Phase Product code: SEA2702 £1462.84  Inc. VAT and mainland UK delivery
Ask a Question
Enter your details and we will get back to you

Product Information

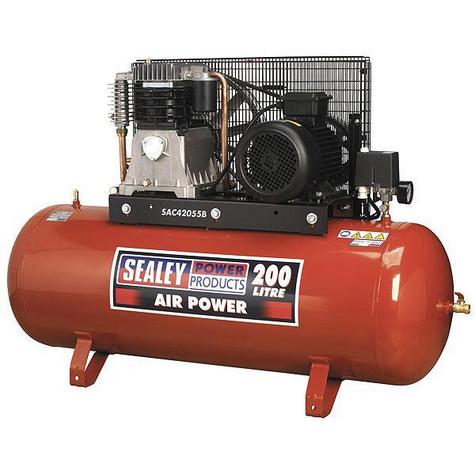

Compressor 200ltr Belt Drive 5.5hp 3ph 2-Stage with Cast Cylinders

  • Heavy-duty three phase compressors suitable for the professional workshop.
  • Two stage pump system coupled with a 5.5hp motor maximises performance to keep running costs low compared to single stage single phase model.
  • Pumps have heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long life.
  • Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
  • Supplied with full CE certification, test certificates and operation/maintenance manual.


  • Make: Sealey
  • Model No.: SAC42055B
  • Motor Output: 5.5hp
  • Voltage/Phase: 415V - 3ph
  • Rated Supply: 32A
  • Speed: 1490rpm
  • Air Displacement cfm(ltr/min): 20.7(586)
  • Maximum Free Air Delivery cfm(ltr/min): 15.1(419)
  • Maximum Pressure: 145psi/10bar
  • Receiver Capacity: 200ltr
  • Dimensions (W x D x H): 1440 x 440 x 965mm
  • Weight: 136kg
  • For Warranty see: Sealey Warranties
  • Standard Delivery 1-2 Days
