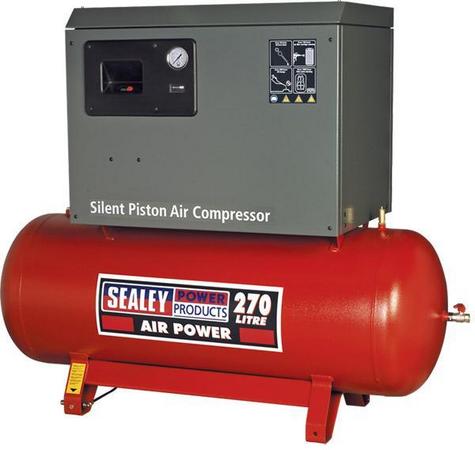

Sealey SAC42755BLN 270ltr Belt Drive Compressor

Compressor Sealey SAC42755BLN 270ltr Belt Drive 3-Phase Product code: SEA1130 £3180.05  Inc. VAT and mainland UK delivery
Ask a Question
Enter your details and we will get back to you

Product Information


Compressor 270ltr Belt Drive 5.5hp 3ph 2-Stage with Cast Cylinders Low Noise

  • Heavy-duty low noise compressor suitable for garage, bodyshop and industrial applications.
  • Fitted with cast iron cylinder head enabling slower revving and improved pump life.
  • Fully enclosed, insulated design gives silent running at just 69dB.A (at 1mtr) and protects vital components from damage.
  • Features fully automatic pressure cut out switch and tank pressure gauge.
  • Heavy-duty three phase electric motor with soft start feature.
  • Control box features tachometer for monitoring use and optimizing service times.
  • Supplied with full CE certification, test certificate, operating/maintenance manual.


  • Make: Sealey
  • Model No.: SAC42755BLN
  • Motor Output: 5.5hp
  • Voltage/Phase: 415V - 3ph
  • Rated Supply: 32A
  • Speed: 1516rpm
  • Noise Level: 69dB.A
  • Air Displacement cfm(ltr/min): 21.1(598)
  • Maximum Free Air Delivery cfm(ltr/min): 15.3(434)
  • Maximum Pressure: 145psi/10bar
  • Receiver Capacity: 270ltr
  • Dimensions (W x D x H): 1550 x 600 x 1260mm
  • Weight: 198kg
  • For Warranty see: Sealey Warranties
  • Standard Delivery 1-2 Days
