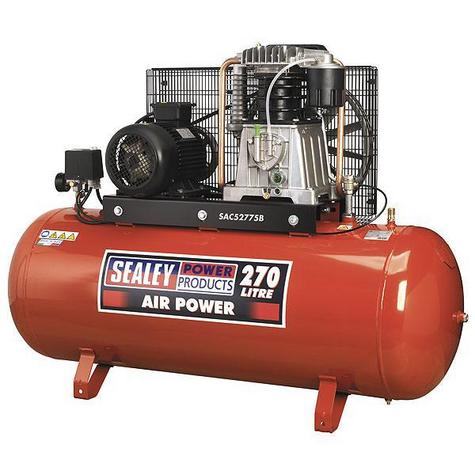

Sealey SAC52775B 270ltr Belt Drive Compressor

Compressor Sealey SAC52775B 270ltr Belt Drive 3-Phase Product code: SEA1191 £1966.40  Inc. VAT and mainland UK delivery
Ask a Question
Enter your details and we will get back to you

Product Information


Compressor 270ltr Belt Drive 7.5hp 3ph 2-Stage with Cast Cylinders

  • Heavy-duty three phase compressor suitable for the professional workshop.
  • Two stage pump system coupled with a 7.5hp motor maximises performance to keep running costs low compared to single stage, single phase model.
  • Pump has heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long life.
  • Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
  • Supplied with full CE certification, test certificates and operation/maintenance manual.


  • Make: Sealey
  • Model No.: SAC52775B
  • Motor Output: 7.5hp
  • Voltage/Phase: 415V - 3ph
  • Rated Supply: 32A
  • Speed: 1280rpm
  • Air Displacement cfm(ltr/min): 29.7(841)
  • Maximum Free Air Delivery cfm(ltr/min): 21.5(609)
  • Maximum Pressure: 145psi/10bar
  • Receiver Capacity: 270ltr
  • Dimensions (W x D x H): 1550 x 510 x 1070mm
  • Weight: 138kg
  • For Warranty see: Sealey Warranties
  • Standard Delivery 1-2 Days
