Product Information

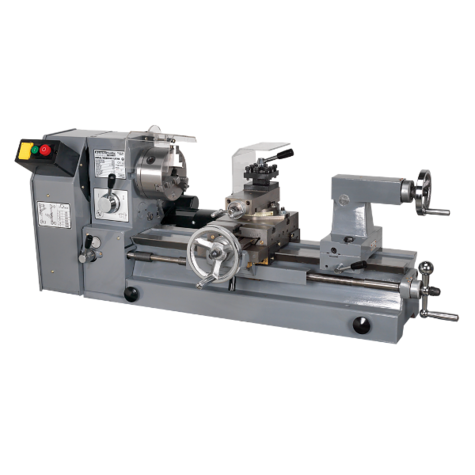

Metal Working Lathe 500mm Between Centres

• Quality workshop lathe suitable for a wide range of turning and drilling applications.
• Features power feed for even surface finish and thread cutting.
• Four-way tool post mounted on compound slide mechanism enables fast interchange of cutting tools with accurate feed.
• Powered by 550Watt motor through six-speed gearbox.
• Incorporates quiet running PTO gearbox with oil bath lubrication for power feed.
• Supplied with three-jaw chuck, and dead centre.
• Fitted with no-load voltage release switch.
• Meets Supply of Machinery (Safety) Regulations 1992 (and amendments).
• Workshop stand available as an optional extra - Model No. SM27ST.

Specifications

• Make: Sealey
• Model No.: SM27
• Centre Height Over Table: 150mm
• Centre Height Over Saddle: 80mm
• Distance Between Centres: 500mm
• Spindle Bore: Ø26mm
• Speed Range: 160-1600rpm
• Head Stock Taper: MT4
• Tail Stock Taper: MT3
• Tail Stock Travel: 40mm
• Screw Cutting
• Metric Pitch Quantity: 14
• Metric Pitch Range: 0.5-3mm
• Inch Pitch Quantity: 20
• Inch Pitch Range: 11-40tpi
• Motor Power: 550W
• Supply: 230V
• For Warranty see: Sealey Warranties
• Standard delivery: 2-3 days
