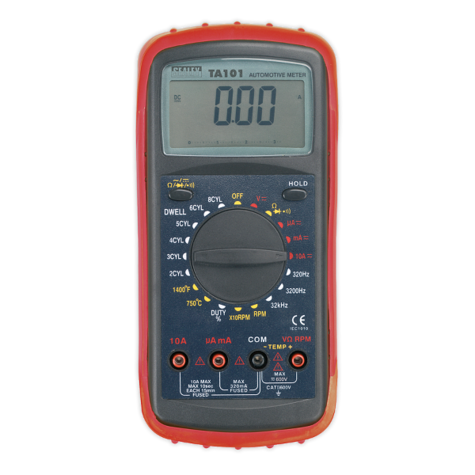

Sealey TA101 Digital Automotive Analyser

Automotive Analyser Sealey TA101 Digital Product code: SEA2495 £75.14  Inc. VAT and mainland UK delivery
Ask a Question
Enter your details and we will get back to you

Product Information


Sealey TA101 Digital Automotive Analyser 12 Function

  • Durable bi-composite case and integral stand suitable for the toughest workshop conditions.
  • Large, hi-contrast LCD display with 18mm high digital read-out and analogue bar graph.
  • Includes auto-ranging, data-hold, auto-polarity, auto-power-off and low battery display functions.
  • Bar graph simplifies lambda sensor testing.
  • Supplied with capped test probes type thermocouple.
  • Bar Graph Display
  • Display Hold
  • Auto-Ranging
  • Auto Power Off
  • Low Battery Indicator


    • Make: Sealey
    • Model No.: TA101
    • Tach (rpm): 0-3260 (x1)rpm, 0-3260 (x10)rpm
    • Dwell: 2Cyl 0-180°, 3Cyl 0-120°, 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°
    • Voltage DC: 326mV, 3.26V, 32.6V, 326V, 1000V (Auto-ranging)
    • VOltage AC: 326mV, 3.26V, 32.6V, 326V, 750V (Auto-ranging)
    • Current DC: 326µA, 3260µA, 32.6mA, 326mA, 10A (Auto-ranging for µA & mA)
    • Current AC: 326µA, 3260µA, 32.6mA, 326mA, 10A (Auto-ranging for µA & mA)
    • Frequency: 320Hz, 3200Hz, 32kHz (Manual Range)
    • Duty Cycle: 0.1-99.9%
    • Resistance: 326Ω, 3.26kΩ, 32.6kΩ, 326kΩ, 3.26MΩ, 32.6MΩ (Auto-ranging)
    • Continuity, Audible: <50Ω
    • Temperature: -20 to +750°C/-4 to +1400°F
    • Diode Check: Typical Test Current 1mA
    • Digit Height: 18mm
    • Batteries (included): 9V (PP9)
    • Hi-Impact Case
    • Size (L x W x D): 200 x 93 x 50mm
    • Weight: 400g
    • For Warranty see: Sealey Warranties
    • Standard Delivery: 2-3 days
