Sealey TA202 Digital Automotive Analyser

Automotive Analyser Sealey TA202 Digital Product code: SEA2499 £97.10  Inc. VAT and mainland UK delivery
Ask a Question
Enter your details and we will get back to you

Product Information


Digital Automotive Analyser 14 Function with IC

  • Extra large, hi-contrast LCD display with 36mm high digital read-out and backlight.
  • Durable bi-composite case and integral stand suitable for the toughest workshop conditions.
  • Features millisecond pulse-width function for accurate measurement of fuel injection systems.
  • Includes auto-ranging, data hold and auto-power-off.
  • Low Battery Indicator
  • Display Hold

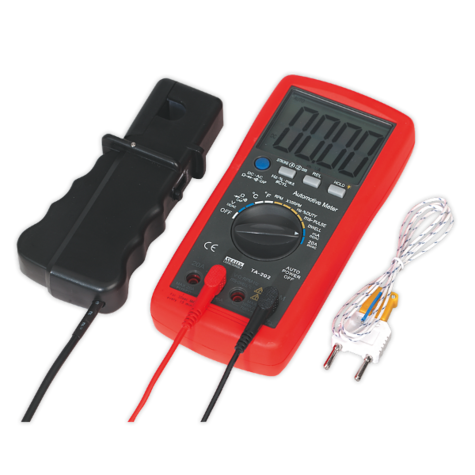

  • Supplied with Inductive Coupler (IC), test probes, thermocouple and carry-case.


    • Make: Sealey
    • Model No.: TA202
    • Tach (rpm): 4-Stroke 600-4000 (x1)rpm, 600-12000 (x10)rpm, 2-Stroke 300-4000 (x1)rpm, 300-6000 (x10)rpm
    • Dwell: 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°
    • Voltage DC: 400mV, 4V, 40V, 400V, 1000V (Auto-ranging)
    • Voltage AC: 400mV, 4V, 40V, 400V, 700V (Auto-ranging, except 0-400mV)
    • Current DC: 400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-ranging for µA & mA)
    • Current AC: 400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-ranging for µA & mA)
    • Capacitance: 40nF, 400nF, 4µF, 40µF, 100µF (Auto-ranging)
    • Frequency: 5Hz, 50Hz, 500Hz, 5kHz, 50kHz, 500kHz, 10MHz (Auto-ranging)
    • Duty Cycle: 0.1-99.9%
    • Pulse Width: 1-10ms
    • Resistance: 400Ù, 4kÙ, 40kÙ, 400kÙ, 4MÙ, 40MÙ (Auto-ranging)
    • Continuity, Audible: <150Ù
    • Temperature: -20 to +760°C/-4 to +1400°F
    • Diode Check: Typical Test Current 0.3mA
    • Digit Height: 36mm
    • Batteries (included): 9V (PP9)
    • Size (L x W x D): 195 x 92 x 36mm
    • Weight: 394g
    • For Warranty see: Sealey Warranties
    • Standard Delivery: 2-3 days
