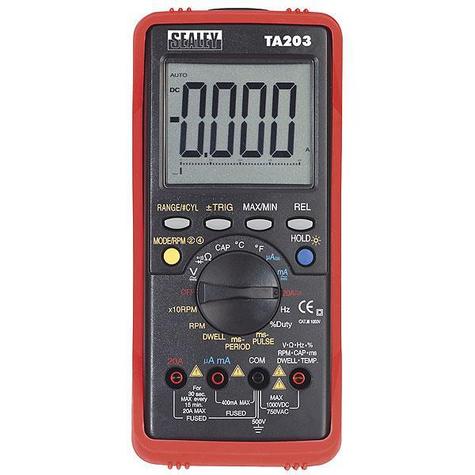

Sealey TA203 Automotive Digital Multimeter

Product Information

Automotive Digital Multimeter 15 Function Bar Graph/PC Link

• Extra large, hi-contrast LCD display with 36mm high digital read-out, bar graph and backlight.
• Durable bi-composite case with probe storage and integral stand, suitable for the toughest workshop conditions.
• Features millisecond pulse-width function for accurate measurement of fuel injection systems.
• Includes auto-ranging, data hold and auto-power-off.
• Bar graph is essential for the correct testing of lambda sensors.
• Display Hold
• Low Battery Indicator
• Supplied with Inductive Coupler (IC) with adjustable sensitivity, for fast reading of engine rpm, test leads (probe and clip) and thermocouple plus USB interface cable and Windows ME/XP/Vista software for downloading data to PC.

Specifications

• Make: Sealey
• Model No.: TA203
• Tach (rpm): 4-Stroke 600-4000 (x1)rpm, 600-12000 (x10)rpm, 2-Stroke & DIS 300-4000 (x1)rpm, 300-6000 (x10)rpm
• Dwell: 1Cyl 0-360°, 2Cyl 0-180°, 3Cyl 0-120°, 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°, 10Cyl 0-36°, 12Cyl 0-30°
• Voltage DC: 400mV, 4V, 40V, 400V, 1000V (Auto-ranging)
• Voltage AC: 400mV, 4V, 40V, 400V, 750V (Auto-ranging, except 0-400mV)
• Current DC: 400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-ranging for µA & mA)
• Current AC: 400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-ranging for µA & mA)
• Capacitance: 40nF, 400nF, 4µF, 40µF, 100µF (Auto-ranging)
• Frequency: 5Hz, 50Hz, 500Hz, 5kHz, 30kHz (Auto-ranging)
• Duty Cycle: 0.1-99.9%
• Period: 2-20ms
• Pulse Width: 2-10ms
• Resistance: 400Ù, 4kÙ, 40kÙ, 400kÙ, 4MÙ, 40MÙ (Auto-ranging)
• Continuity, Audible: <150Ù
• Temperature: -20 to +760°C/-4 to +1400°F
• Diode Check: Typical Test Current 0.3mA
• Digit Height: 36mm
• Batteries (included): 9V (PP9)
• Size (L x W x D): 215 x 100 x 60mm
