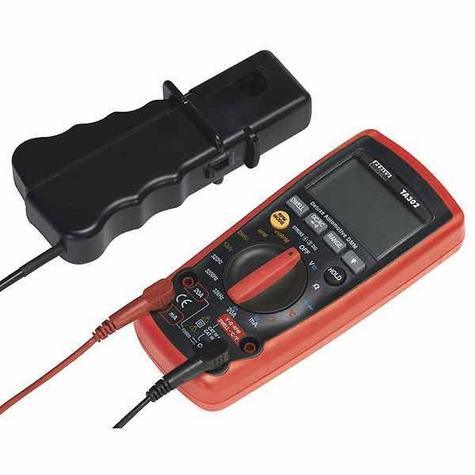

Sealey TA302 Digital Automotive Analyser

Automotive Analyser Sealey TA302 Digital Product code: SEA1589 £91.70  Inc. VAT and mainland UK delivery
Ask a Question
Enter your details and we will get back to you

Product Information


Digital Automotive Analyser 12 Function with IC

  • New generation, 12 function, auto-ranging automotive diagnostic multimeter.
  • Combination digital/bar-graph display gives accurate indication of component outputs.
  • Large, easy-to-read high contrast display with bright, white backlight.
  • Workshop-tough, durable bi-composite case with integral stand.
  • Reads standard automotive parameters including duty cycle.
  • Features auto-ranging, and data hold functions with overload protection on all ranges.
  • Supplied with inductive coupler, test probes and thermocouple


    • Make: Sealey
    • Model No.: TA302
    • Tach (rpm): 4-8cyl, 2 & 4-Stroke 600-4000 (x1)rpm, 600-12000 (x10)rpm
    • Dwell: 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°
    • AC Voltage: 3.2V, 32V, 320V, 600V (Auto Ranging)
    • DC Voltage: 320mV, 3.2V, 32V, 320V, 600V (Auto Ranging)
    • AC Current: 320µA, 3200µA, 32mA, 320mA, 10A (Auto Ranging)
    • DC Current: 320µA, 3200µA, 32mA, 320mA, 10A (Auto Ranging)
    • Capacitance: n/a
    • Frequency: 320Hz, 3200Hz, 32kHz
    • Duty Cycle: 0.1-99.9%
    • Pulse Width: n/a
    • Resistance: 320Ω, 3.2kΩ, 32kΩ, 320kΩ, 3.2MΩ, 32MΩ
    • Continuity: <35Ω Continuity Buzzer 2kHz
    • Temperature: -20 to +760°C, -4 to +1400°F
    • IR Temperature: n/a
    • Diode Check: Yes
    • Transistor Test: n/a
    • Back Light: Yes
    • Bar-Graph Display: Yes
    • Display Hold: Yes
    • Auto Ranging: Yes
    • Inductive Coupler: Yes
    • PC Interface: n/a
    • Digits Height: 18mm
    • Auto Power Off: n/a
    • Low Battery Indicator: Yes
    • Batteries (Supplied): 9V (PP3)
    • Hi-Impact Case: Yes
    • Size (L x W x D): 167 x 79 x 50mm
    • EAN: 5051747600669
    • For Warranty see: Sealey Warranties
    • Standard Delivery: 2-3 days
