Sealey TA303 Digital Automotive Analyser

Automotive Analyser Sealey TA303 Digital Product code: SEA1826 £139.98  Inc. VAT and mainland UK delivery
Ask a Question
Enter your details and we will get back to you

Product Information


Digital Automotive Analyser 14 Function with IC

  • New generation, 14 function, auto-ranging automotive diagnostic multimeter.
  • Combination digital/bar-graph display gives accurate indication of component outputs.
  • Large, easy-to-read high contrast display with bright, white backlight.
  • Workshop-tough, durable bi-composite case with integral stand and auto power shut-off.
  • High speed processing circuitry reads standard automotive parameters including duty cycle and pulse width making this tool ideal for testing fuel injection systems.
  • Features auto-ranging, and data hold functions with overload protection on all ranges.
  • Includes relative functions including Min./Max. and Peak Hold.

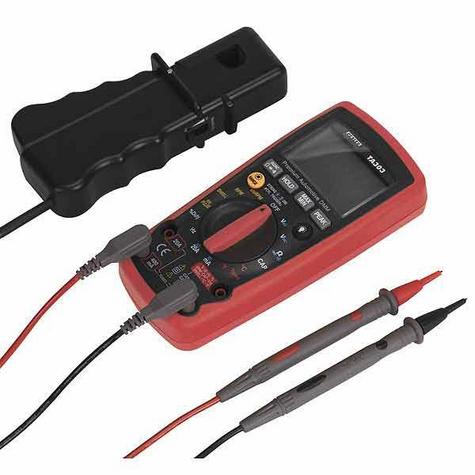

  • Supplied with inductive coupler, test probes and thermocouple.


    • Make: Sealey
    • Model No.: TA303
    • Detailed Information
    • Tach (rpm): 4-8cyl, 2 & 4-Stroke 600-4000 (x1)rpm, 600-12000 (x10)rpm
    • Dwell: 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°
    • AC Voltage: 400mV, 4V, 40V, 400V, 600V (Auto Ranging)
    • DC Voltage: 400mV, 4V, 40V, 400V, 600V (Auto Ranging)
    • AC Current: 400µA, 4000µA, 40mA, 400mA, 10A (Auto Ranging)
    • DC Current: 400µA, 4000µA, 40mA, 400mA, 10A (Auto Ranging)
    • Capacitance: 40nF, 400nF, 4µF, 40µF, 400µF, 4mF, 40mF (Auto Ranging)
    • Frequency: 0.001Hz-9.99MHz
    • Duty Cycle: 0.1-99.9%
    • Pulse Width: 0.1-10mS
    • Resistance: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ (Auto Ranging)
    • Continuity:Temperature: -20 to +760°C, -4 to +1400°F
    • IR Temperature: n/a
    • Diode Check: Yes
    • Transistor Test: n/a
    • Back Light: Yes
    • Bar-Graph Display: Yes
    • Display Hold: Yes
    • Auto Ranging: Yes
    • Inductive Coupler: Yes
    • PC Interface: n/a
    • Digits Height: 18mm
    • Auto Power Off: Yes
    • Low Battery Indicator: Yes
    • Batteries (Supplied): 9V (PP3)
    • Hi-Impact Case: Yes
    • Size (L x W x D): 170 x 79 x 50mm
    • EAN: 5051747600676
