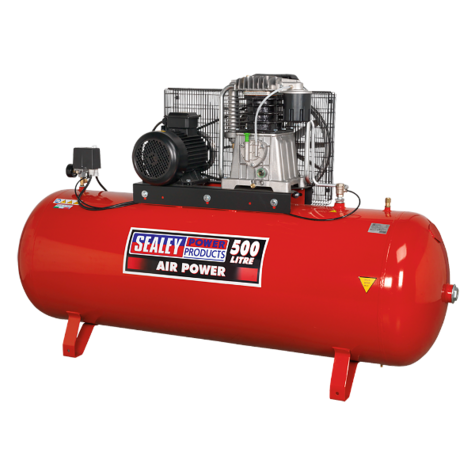

Compressor Sealey SAC55075B 500ltr Belt Drive 7.5hp 3ph 2-Stage

£2320.43
Compressor Sealey SAC55075B 500ltr Belt Drive 7.5hp 3ph 2-Stage Product code: SEA3242 £2320.43  Inc. VAT and mainland UK delivery
Ask a Question
Enter your details and we will get back to you

Product Information

Sealey

Compressor 500ltr Belt Drive 7.5hp 3ph 2-Stage with Cast Cylinders

  • Heavy-duty 3-phase compressor suitable for the professional workshop.
  • Two stage pump system coupled with a 7.5hp motor maximises performance to keep running costs low compared to single stage, single phase model.
  • Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long life.
  • Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
  • Supplied with full CE certification, test certificates and operating/maintenance manual.

Specifications

  • Make: Sealey
  • Model No:  SAC55075B
  • Motor Output:  7.5hp
  • Voltage/Phase:  415V - 3ph
  • Minimum Rated Supply:  16A
  • Speed:  1280rpm
  • Air Displacement cfm(ltr/min):  29.3(830)
  • Maximum Free Air Delivery cfm(ltr/min):  22.6(640)
  • Maximum Pressure:  145psi(10bar)
  • Receiver Capacity:  500ltr
  • Outlet Fitting:  3/4"BSP Female Tap
  • Dimensions (W x D x H):  2000 x 700 x 1230mm
  • Weight:  255kg
  • For Warranty see: Sealey Warranties
