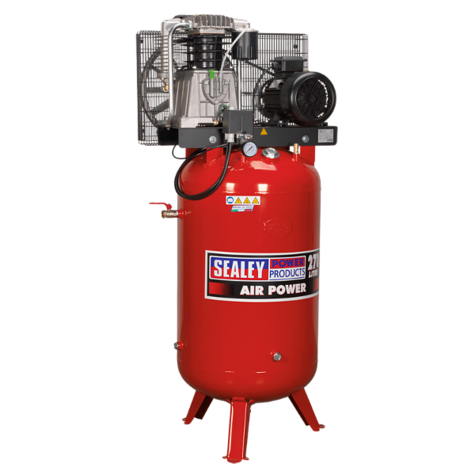

Compressor Sealey SACV52775B 270ltr Vertical 7.5hp 3ph 2-Stage Belt Drive

£2348.27
Compressor Sealey SACV52775B 270ltr Vertical 7.5hp 3ph 2-Stage Belt Drive Product code: SEA3245 £2348.27  Inc. VAT and mainland UK delivery
Ask a Question
Enter your details and we will get back to you

Product Information

Sealey

Compressor 270ltr Vertical Belt Drive 7.5hp 3ph 2-Stage with Cast Cylinders

  • Heavy-duty 3-phase compressor suitable for the professional workshop.
  • Two stage pump system coupled with a 7.5hp motor maximises performance to keep running costs low compared to single stage, single phase models.
  • Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long life.
  • Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.

Specifications

  • Make: Sealey
  • Model No:  SACV52775B
  • Motor Output:  7.5hp
  • Voltage/Phase:  415V - 3ph
  • Minimum Rated Supply:  16A
  • Speed:  1280rpm
  • Air Displacement cfm(ltr/min):  29.3(830)
  • Maximum Free Air Delivery cfm(ltr/min):  22.6(640)
  • Maximum Pressure:  145psi(10bar)
  • Receiver Capacity:  270ltr
  • Outlet Fitting:  3/4"BSP Female Tap
  • Dimensions (W x D x H):  770 x 620 x 1775mm
  • Weight:  200kg
  • For Warranty see: Sealey Warranties
  • Standard Delivery 1-2 Days
