Probst SDH-M-10 Mechanical Manhole Cover Lifter
Ask a Question
FREE NEXT DAY DELIVERY.
Order PRE 12:30pm, on a working day, and it will be delivered the next working day. (Within Mainland UK & subject to availability)
Mechanical Manhole Cover Lifter
- The mechanical manhole cover lifter releases even seized manhole covers very easily and with little force.
- Lifting manhole covers out of the frame by hand using hooks is a very difficult undertaking, e.g. for municipal construction yard employees.
- With weights of up to 70 kg, it is certainly not recommended even with 2 people, for ergonomic reasons.
- With the new SDH-M-10 mechanical manhole cover lifter from Probst, however, you can relieve your employees and improve efficiency.
- For lifting out manhole covers of diameter up to Ø900 mm and maximum hook spacing of 590mm.
- The hook spacing is continuously adjustable.
- To lift out a manhole cover, so-called “keys” are inserted into two holes in the manhole cover (Supplied seperately).
- These keys can now be held by the “hooks” of the manhole cover lifter.
- Can be combined with spreader bars for lifting split covers.

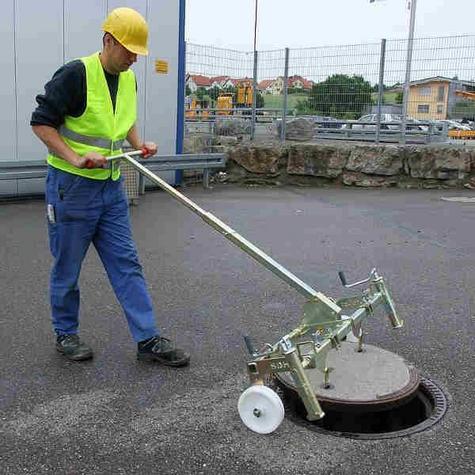

- By tilting the SDH-M-10 with the handle, the manhole cover is lifted.
- Seized covers can be loosened easily with 2 foldout feet (lifting spindles) on the sides.
- To do this, the feet are placed on the ground and with a crank, the manhole covers, can now be pushed out.
- The handle can be adjusted in length and dismantled entirely for transportation.
- In addition, the angle of the handle can be altered.
- Optionally available is the SDH-M-10-LHM-400 permanent lifting magnet with slot on SDH-M-10 for lifting cast steel and cast iron manhole covers.
- Keys and spreader bars also have to be ordered separately.
- Make: Probst
- Product Code: 54800009
- Hook Centres (min./max.): 100mm/590mm (4" / 23")
- Pulling Force: 1,000kg (2,200lbs)
- Weight: 34kg (75lbs)
