C.Scope 80metre Flexible Pipe Tracer
Some C.Scope Products have a long delivery time. Please contact us for information BEFORE ordering.
The Flexible Tracer is highly effective at locating and tracing the route of small diameter, non-metallic ducts, pipes, sewers and drains.
When used with any C.Scope Cable Locator and Signal Generator, both the route of a non-metallic pipe and a particular end point can be pinpointed with the Flexible Tracer. This is particularly useful for identifying the position of any blockages or obstructions within the pipe. If a depth measuring Locator is being used then it is also possible to know the depth of the pipe/blockage.

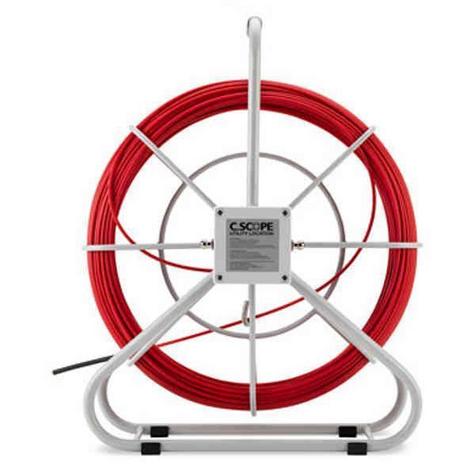

The Flexible Tracer is lightweight and compact making it very easy to transport. It comprises a 6mm diameter, 80m long continuous fibreglass rod housed in a strong reel that rotates on an axle. The axle has a slip-ring allowing the Signal Generator to remain connected to the Connection Terminals of the Flexible Tracer whilst it is being inserted into the pipe to be traced. A tiny Sonde is built into the tip of the Flexible Tracer allowing the end point of the Tracer to also be located. Uniquely, this Sonde is also flexible allowing the Flexible Tracer to negotiate bends in a pipe that would ordinarily stop a conventional Sonde from getting past.
There are two main methods for tracing the route of non-metallic pipes using the Flexible Tracer:
Line Location – Feed the rod into the pipe/duct and attach one Direct Connection lead of a Signal Generator to one connection terminal of the Tracer and the other Direct Connection lead to an Earth Stake. The Rod can then be located thus identifying the route of the pipe.
Tip/Sonde Location – Feed the rod into the pipe/duct and attach one Direct Connection lead of a Signal Generator to one connection terminal of the Tracer and the other Direct Connection lead to the other terminal. This 7.5 kg the Sonde at the tip of the Flexible Tracer allowing the end point and the depth of the Flexible Tracer to be identified.
- Product Name: 80 m Flexible Tracer
- Part No. YIRRFT-80
- Frequency: Optimised for 32,768Hz
- Rod Diameter: 5 mm nominal
- Rod Material: Quality sleeved fibreglass rod with three integral copper wires
- Frame Size: 58.8 x 28.8 x 48.5 cm
- Frame Material: Powder coated 16 mm steel tube
- Reel Diameter: 48 cm
- Weight: 7.5 Kg
- IP rating: for Tracer Rod & Tip 68, for Casing 54, for Terminal Box 66
