Sealey TA304 Digital Automotive Analyser

£182.74
Automotive Analyser Sealey TA304 Digital Product code: SEA1863 £182.74  Inc. VAT and mainland UK delivery
Ask a Question
Enter your details and we will get back to you

Product Information

Sealey

Digital Automotive Analyser 15 Function with IC/IR
  • New generation, 15 function, auto-ranging automotive diagnostic multimeter with IR thermometer attachment.
  • Combination digital/bar-graph display gives accurate indication of component outputs.
  • Large, easy-to-read high contrast display with bright, white backlight.
  • Workshop-tough, durable bi-composite case with integral stand and auto power shut-off.
  • High speed processing circuitry reads standard automotive parameters including duty cycle and pulse width making this tool ideal for testing fuel injection systems.
  • Features auto-ranging, and data hold functions with overload protection on all ranges.
  • Includes relative functions including Min./Max. and Peak Hold.

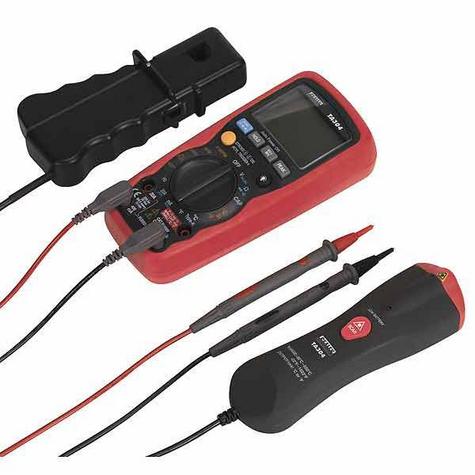

  • Supplied with inductive coupler, IR thermometer, test probes and thermocouple in carry-case.
Specifications
  • Make: Sealey
  • Model No.: TA304
  • EAN: 5051747600683
  • Tach (rpm): 2-10cyl, 4-Stroke 600-4000 (x1)rpm, 600-12000 (x10)rpm
  • Dwell: 4Cyl 0-90, 5Cyl 0-72, 6Cyl 0-60, 8Cyl 0-45
  • AC Voltage: 400mV, 4V, 40V, 400V, 700V (Auto Ranging)
  • DC Voltage: 400mV, 4V, 40V, 400V, 1000V (Auto Ranging)
  • AC Current: 400A, 4000A, 40mA, 400mA, 4A, 20A (Auto Ranging)
  • DC Current: 400A, 4000A, 40mA, 400mA, 4A, 20A (Auto Ranging)
  • Capacitance: 40nF, 400nF, 4F, 40F, 400F, 4mF, 40mF (Auto Ranging)
  • Frequency: 0.001Hz-9.99MHz (Auto Ranging)
  • Duty Cycle: 0.1-99.9%
  • Pulse Width: 0.1-10ms
  • Resistance: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ (Auto Ranging)
  • Continuity: <30Ω Continuity Buzzer 2kHz
  • Temperature: -20 to +760C, -4 to +1400F
  • IR Temperature: -20 to +280C, -4 to +536F
  • Diode Check: Yes
  • Transistor Test: n/a
  • Back Light: Yes
  • Bar-Graph Display: Yes
  • Display Hold: Yes
  • Auto Ranging:Yes
  • Inductive Coupler: Yes
  • PC Interface: n/a
  • Digits Height: 20mm
  • Auto Power Off: Yes
  • Low Battery Indicator: Yes
  • Batteries (Supplied): 9V (PP3)
  • Hi-Impact Case: Yes
  • Size (L x W x D): 182 x 82 x 55mm
