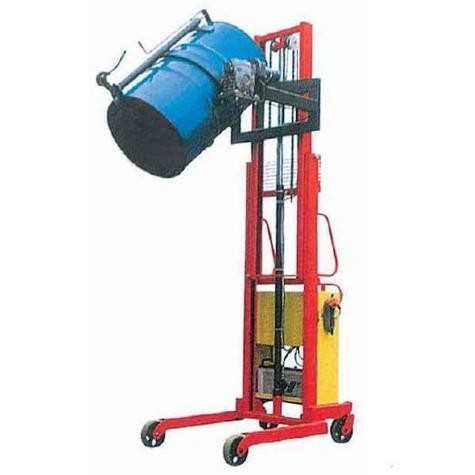

The Warrior Semi Electric Tipping Barrel Lifter can lift, rotate and pour powered by an electro hydraulic and electro mechanical system. Travel is by manual effort.
- Lifting Capacity - 300Kg
- Max Lift Height to Top of Vertical Oil Drum - 3450mm
- Max Clearance under drum when tilted forward down for pouring at 45 degrees - 2370mm
- Overall Truck Length - 1350mm
- Overall Truck Width - 915mm
- Inside Straddle Width - 770mm
- Lowered Mast Height - 1980mm
- Turning radius - 1300mm
- Lift by means of and electro hydraulic power pack
- Tilting by means on and electro mechanical gearbox.
- Lift by lever
- Tilt by chorded remote control.
- Battery 12v/135ah
- Built in timed battery charger
- Clamp easy and light to use
- Truck weight - 320Kg
- Standard delivery 12-14 weeks
- 12 month on site parts and labour warranty
