Genie GS2032 Scissor Lift Access Platform

£14991.00
Genie GS2032 Scissor Lift Access Platform Product code: GNI1002 £14991.00  Inc. VAT and mainland UK delivery
Ask a Question
Enter your details and we will get back to you

Product Information

Genie Logo

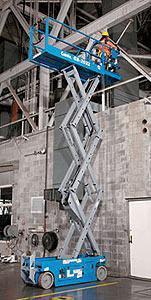

Genie GS2032 Scissor Lift 26ft. working height

Features

  • 2.26 x 81 cm (89 x 32 in) steel platform
  • 91 cm (36 in) extension deck
  • Folding rails with half-height swing gate
  • Dual front wheel drive
  • Automatic battery charger
  • Proportional lift and drive
  • Platform control with battery charge indicator and diagnostic display
  • Onboard diagnostic system
  • AC power to platform
  • Manual platform lowering valve
  • Emergency stop at both platform and ground controls
  • Multiple disc brakes
  • Manual brake release
  • Solid non-marking tyres
  • Pothole guards
  • Tilt level sensor with audible alarm
  • Descent alarm
  • Electronic horn
  • Hour meter
  • Certified load sensor

Specifications

  • Working height maximum 8.10 m 26 ft
  • Platform height maximum 6.10 m 20 ft
  • Platform length - outside 2.26 m 7 ft 5 in extended 3.18 m 10 ft 5 in
  • Slide-out platform extension deck 91 cm 3 ft
  • Platform width - outside 81 cm 2 ft 8 in
  • Guardrail height - fold down 1.10 m 3 ft 7 in
  • Toeboard height 15 cm 6 in
  • Height stowed folding guardrails 2.13 m 7 ft 0 in
  • rails folded 1.75 m 5 ft 9 in
  • Length - stowed 2.44 m 8 ft
  • Length - stowed extended 3.33 m 10 ft 11 in
  • Width 81.3 cm 2 ft 8 in
  • Wheelbase 1.85 m 6 ft 1 in
  • Ground clearance - centre 9 cm 3.5 in - with pothole guards deployed 2 cm .75 in
  • Lift capacity 363 kg 800 lbs
  • Drive speed - stowed 3.5 km/h 2.2 mph
  • Drive speed - raised 0.8 km/h 0.5 mph
  • Gradeability stowed 30%
  • Turning radius - inside zero
  • Turning radius - outside 2.13 m 7 ft 0 in
  • Raise / lower speed 30 / 40 sec
  • Controls proportional
  • Drive dual front wheel
  • Multiple disc brakes dual rear wheel
  • Tyres - solid non-marking 38 x 13 x 28 cm 15 x 5 x 11 in
  • Power source 24 V (four 6 V 225 Ah batteries)
  • Hydraulic system capacity 14.2 L 3.75 gal
  • Weight 1,825 kg 4024 lbs
