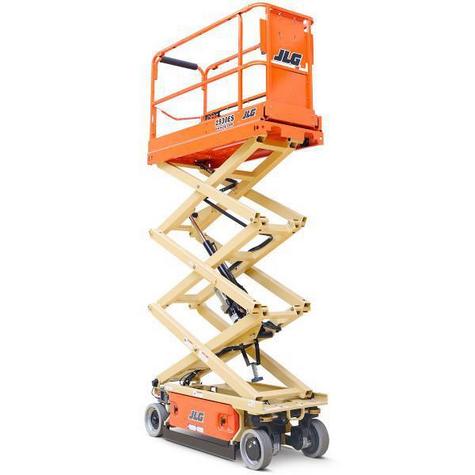

JLG 1930ES Scissor Lift Access Platform

£10552.94
JLG 1930ES Scissor Lift Access Platform Product code: JLG1015 £10552.94  Inc. VAT and mainland UK delivery
Ask a Question
Enter your details and we will get back to you

Product Information


JLG 1930ES Scissor Lift working height 19ft

JLG Scissor lift working
This scissor lift is only 0.76m wide, slim enough to fit through standard doorways and down narrow aisles. Front wheel drive and front wheel steering give superior manouvrability in tight places.
Proportional drive and lift controls make one man operation simple.
CE rated for indoor/outdoor use.

Specifications
  • Platform Height –Elevated 5.72 m (18 ft. 9 in.)
  • Platform Height – Lowered 0.86 m (2 ft. 10 in.)
  • Platform Railing Height 1.10 m (3 ft. 7.5 in.)
  • Overall Height 1.98 m (6 ft. 5 in.)
  • Platform Dimensions 0.76 m x 1.87 m (2 ft. 6 in. x 6 ft. 1.5 in.)
  • Platform Extension 0.90 m (2 ft. 11.5 in.)
  • Overall Machine Length 1.87 m (6 ft. 1.5 in.)
  • Overall Machine Width 0.76 m (30 in.)
  • Wheelbase 1.60 m (5 ft. 3 in.)
  • Ground Clearance 0.09 m (3.5 in.)
  • Tyre Size, (Non-Marking Solid) 318 mm x 100 mm (12.5 in. x 4 in.)
  • Max. Platform Capacity 230 kg (500 lbs.)
  • Capacity On Deck Extension 120 kg (250 lbs.)
  • Lift/Lower Time 22/28 seconds
  • Maximum Drive Height 5.72 m (18 ft. 9 in.)
  • Drive Speed, Lowered 4.8 kph (3.0 mph)
  • Drive Speed, Elevated 0.8 kph (0.5 mph)
  • Gradeability 25%
  • Turning Radius (Outside) 1.75 m (5 ft. 9 in.)
  • Batteries 4 x 6V, 220 amp-hr
  • Charger 20 Amp Automatic (120V/240V–50/60HZ)
  • Pump Fixed Clearance Gear
  • Brakes (On Drive Wheels) Electric, Auto Friction
  • Gross Vehicle Weight 1,565 kg (3,450 lbs.)
  • Rail Type Fixed
  • Drive 6kW (8 hp)
