SkyJack 9253RT Rough Terrain Diesel Scissor Lift

£49995.00
SkyJack 9253RT Rough Terrain Diesel Scissor Lift Product code: SKJ1012 £49995.00  Inc. VAT and mainland UK delivery
Ask a Question
Enter your details and we will get back to you

Product Information

SkyJack logo

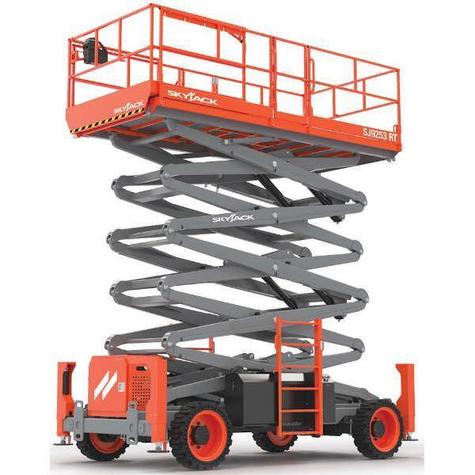

SkyJack 9253RT Rough Terrain Scissor Lift working height 17.9m metres

Skyjack’s Full-Size Series Rough Terrain Scissor Lifts deliver huge platforms, soaring work heights and heavy duty capacities — all in one package!

An easily accessible Kubota diesel engine powers a robust axle based 4WD system with “no-spin” and limited slip differentials, delivering excellent job site terrainability.
As with every Skyjack model, these units use an analog based control system, featuring Skyjack’s standard colour coded and numbered wiring, for ease of troubleshooting.

Please note that carriage is NOT included in the price of this machine. For a quote please call 01202 233202 or email:[email protected]

Features

  • ■ AXLDRIVETM Axle-based 4WD system
  • Operator controlled locking rear differential and limited slip
  • front differential
  • SKYCODEDTM Color coded and numbered wiring system with
  • on-board interface
  • Drivable at full height (except SJ9253 RT – 33’)
  • Diesel engine
  • High strength and impact resistant composite control box
  • Fully proportional drive and lift functions
  • Up to 2,750 lbs (1,247 kg) capacity
  • Self-centering scissor design to support dual extension decks
  • Oversized platform with minimal clearance over side of machine
  • 5’ (1.52 m) Roll-out extension deck
  • Wet disc SAHR brakes (rear axle)
  • Auto leveling outriggers (standard only on SJ9253 RT)
  • Up to 40% Gradeability
  • 110V AC outlet on platform with GFI
  • Tilt alarm with drive & lift cut-out
  • All motion audible alarm
  • Lanyard attachment points
  • Tie down/lifting lugs
  • Overload sensing system
  • DC Powered emergency lowering
  • Operator horn
  • Flashing Light
  • Fold down hinged railing system
  • Full height spring hinged gate
  • Grip lug, solid tires
  • Telematics ready
  • 2 Year Gold Leaf Warranty (5 year structural warranty)

Specifications

  • Working height 17.98 metres
  • Platform height 16.15 metres
  • Lowered platform height 2.12 metres
  • Width 2340mm x length 4500mm x 3200mm height (railings up), 2300mm (railings down)
  • 35% gradeability
  • Cage capacity 681kg
  • 5 persons maximum
  • Platform size 1880mm x 4340mm - extended 7200mm
  • Extension deck roll out 1520mm
  • Travel speed lowered 4.8km/hour
  • Travel speed raised 0.6km/hour
  • Turning radius inside 3300mm
  • Lift time 60 seconds
  • Weight 8301kg
