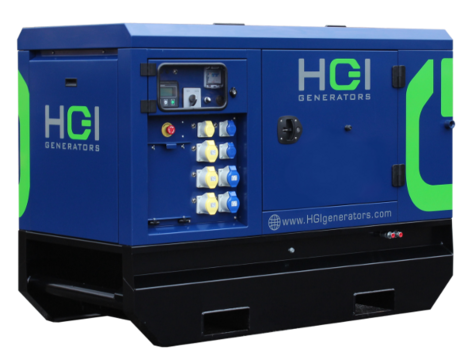

Generator HGI HRD090D1 Super Silenced 1500rpm Diesel 9 Kva
Ask a Question
9 Kva Super Silenced 1500rpm Diesel Generator
- The HRD range of Generators has been redesigned to provide a more competitive offering whilst continuing to deliver reliable and fuel efficient performance.
- Designed to meet the demands of today’s customers, the new generator sets offer power nodes for all sectors from industry to residential.
- Typical applications include outdoor events and extensive use in the construction industry.
- Designed from the ground up with a new range of engines providing the customer with a more competitive option.
- All encapsulated in a high quality enclosure with excellent sound attenuation for a diverse range of applications.
- Canopy robust state of the art construction using manufacturing techniques used in car body production.
- Featuring main circuit and individual socket breakers.
- Keyed lockable lever latches providing maximum security.
- Tight access removable doors when open 30 degrees for easy site access.
- Architectural powder double coated zinc treated sheet steel sound attenuated canopy passing 1000hrs salt spray tests.
- Multi Voltage available to suit all market applications with easy access terminal box for easy hard wire installations.
- The control module will give comprehensive engine and alternator protection via an array of warning, electrical trip and shutdown alarms.
- All removable panels are sealed with oversized bulb seals to prevent water ingress and reduce noise.
- Fork Pocket and Tow Tubes for easy site movement.
- Bunded fuel tank with bund alarm.
- External Fuel Connectors including pump with 6 way valve internal & external selection lever.
- Non Protruding Lifting Beam and Eye so not to increase volume of set.
- Monitor the engine speed, oil pressure, coolant temperature, frequency, voltage, current, power and fuel level via the facia or PC using USB communication.
- Hours counter provides accurate information for monitoring and maintenance periods.
- IP65 rating offers increased resistance to water ingress.
- High ambient temperature performance making it a superb candidate for export.
- AVR controlled alternators designed to automatically maintain a constant voltage level regardless of how much power is drawn.
- All sets carry a hard wire facility as standard making it a truly versatile set.
- User friendly set up & button layout for ease of use.
- Built in the UK.
- Manufacturer's 3 year / 2000hrs warranty.
- Make: Harrington Generators International
- Model No.: HRD090D1
- Rated Output: 9.0kVA(7.2kW)
- Frequency 50 Hz
- Voltage: 110 /230
- Socket Configuration:
- 110V: 1 x 16A & 3 x 32A
- 230V: 2 x 16A & 2 x 32A
- 400V: N/A
- Engine: Kubota D1105
- Speed: 1500rpm
- Fuel Tank Capacity: 150 Litres
- Run Time (Hrs) @ 75% Load: 71
- Sound Level dB(A) @ 7Mtrs: 63
- Cooling System: Water Cooled
- Alternator: MeccAlte
- Dimensions L x W x H (mm): 1850 x 969 x1348
- Weight Approx (Kg) Dry/Wet: 682/812
- Road Tow Trailer
- 300ltr Long Run Fuel Tank (Not available with Road Tow Trailer option)
- Automatic Mains Failure Panel
- Socket and Phase re-configuration
