Generator Hyundai DHY120KSE 1500rpm 'Silent' 3 Phase Diesel 120kVA

£16124.00
Generator Hyundai DHY120KSE 1500rpm 'Silent' 3 Phase Diesel 120kVA Product code: HYU1035 £16124.00  Inc. VAT and mainland UK delivery
Ask a Question
Enter your details and we will get back to you

Product Information

HYUNDAI

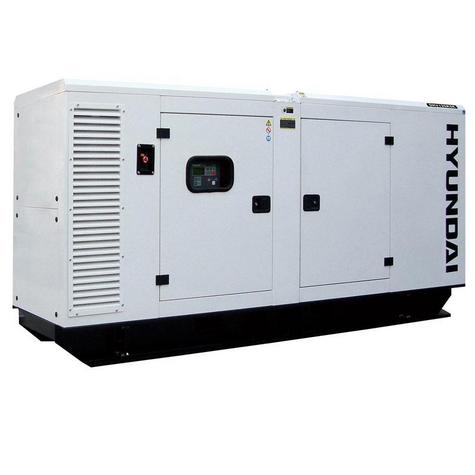

Hyundai DHY120KSE 1500rpm 'Silent' Three Phase Diesel Generator 120kVA.

The DHY120KSE is a water-cooled, 2-phase 120kVa diesel generator which proving a popular choice for factory, business and industrial standby.

The base fuel tank can easily be filled from outside the machine and features like emergency stop, battery isolator, brushless, AVR (Automatic Voltage Regulator) alternator and forklift pick up slots make it a very easy to use generator.

Options available: Water heater, AMF (Automatic Mains Failure) panel, or ATS (Automatic Transfer Switch), exhaust pipe extensions, two wire remote start switches.

All standard Hyundai 1500rpm diesel generators above 15kw are designed to be used as stationary generators for standby or prime power supply.

Specifications

  • Make: Hyundai
  • Model No.: DHY120KSE
  • EAN:
  • Rated Power (kW / kVA): 87 / 109
  • Max. Power (kW / kVA): 96 / 120
  • Frequency (Hz): 50
  • Voltage (V): 230 / 400
  • Current (A): 157
  • Controller IL-NT MRS: 10
  • ATS Port: Included
  • Battery (Ah): 2x12V-80Ah
  • Fuel Tank Capacity (L): 245
  • Cooling Fluid Volume (L): 28
  • Fuel Consumption (L/Hr 50/100% loading): 16.4 / 31.8
  • Running Time Under (Hr 50/100% loading): 15 / 7.7
  • Noise Level behind 7m (dBA): 72
  • Engine Model: HY6A3L-DA
  • Power Output (kW/1500rpm): 113
  • Rotate Speed: 1500 RPM
  • Speed Regulation: Mechanical
  • Starting Method: Electric
  • Displacement (cc): 6500
  • Oil Capacity (L): 16
  • Alternator: 274D
  • Rated Power (kW/kVA): 91 / 114
  • Power Factor (Cosφ): 0.8
  • Voltage Regulator: AVR
  • N.G. (kg.) 1965
  • G.W. (kg.)
  • Dimensions (mm): L: 3650×W:1150×H:1920
  • Capacity (units/container): 1/20GP;3/40GP;3/HQ
  • 12 months/1000 hours manufacturer's warranty

N.B. A FORKLIFT TRUCK WILL BE REQUIRED ON-SITE TO AVOID ADDITIONAL CARRIAGE COSTS.
