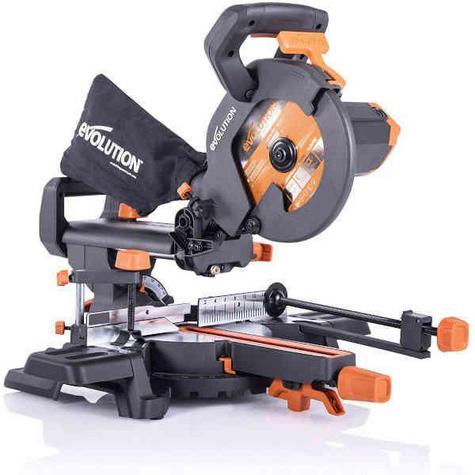

Evolution RAGE3-S 210mm Sliding Mitre Saw 230V

Evolution R210SMS+ 210mm Multi-Material Sliding Mitre Saw 230VSaw Product code: EVO1035 This item is temporarily unavailable. £154.32  Inc. VAT and mainland UK delivery
Ask a Question
Enter your details and we will get back to you

Product Information

The Evolution R210SMS is a multi material Sliding Mitre Saw using one blade for steel, wood, plastic etc. - 230volt

  • Multi-Material cutting technology. One saw, one blade, cuts all.*
  • Precision cutting with laser guidance, trench cut facility, 230mm slide, 0˚ - 45˚ bevel and 50° - 50° mitre settings.
  • Reliability at the forefront of Evolution saws ensures smooth, square cutting every time in a variety of materials.
  • 1500W of hi-torque power & optimised gearbox to cut mild steel, wood with embedded nails and more.
  • Perform accurate Cross cuts, Mitre cuts, Bevel cuts and Compound cuts with adjustable precision settings.
  • Compatible with the Evolution Mitre Saw Stand and 210mm continuous rim diamond blade for cutting tiles, brick & ornamental stone, (sold separately).
  • 3 Year limited warranty.
  • Premium Japanese Tungsten-Carbide-Tipped (TCT) 210mm blade included.
  • Dual Quick-Release clamps included for additional accuracy & faster adjustments.
  • Slide rail protector included protects against damage & prevents dust ingress.
  • Cleaner & safer working environment with dust collection bag & dust port adaptor for use with vacuum extraction.
  • Integrated carry handles - easy to carry & transport around the workplace.
  • 3m power cable reduces the need for extension leads.


  • Model No. 048-0001A
  • Motor (240V 50Hz):1500W
  • Speed No Load:3750 rpm
  • Max.Bevel (Left):45°
  • Max. Mitre:50° - 50°
  • Cable Length:3m
  • Blade: Dia. 210mm, No. of Teeth:24, Bore:25.4, mmKerf:1.7mm
  • Max.Cross Cut (0° x 0°):230mm x 65mm
  • Max. Bevel Cut (0° x 45°):230mm x 38mm
  • Max. Mitre Cut (45° x 0°):150mm x 65mm
  • Max. Compound Cut (45° x 45°):150mm x 38mm
  • Mild Steel Plate (Max. Thickness):6mm
  • Mild Steel Box Section(Max. Wall Thickness):3mm
  • Product Dimensions:314mm x 575mm x 610mm
  • Packaging Dimensions:475mm x 315mm x 435mm
  • Product Weight:11.2 kg
  • Packaged Weight:13.8 kg
  • Sound Pressure Level LPA:220-240V: 96.5dB(A)
  • Sound Power Level LWA:220-240V: 109.5dB(A)
  • Standard Delivery: 1-3 working days
