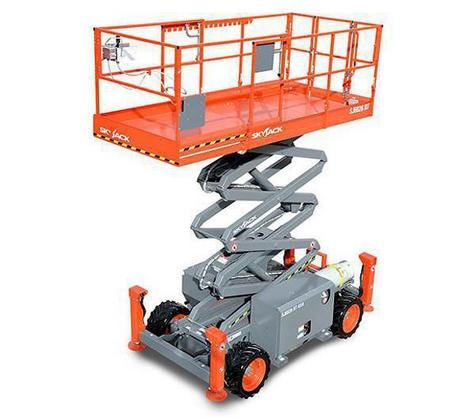

SkyJack 6826RT Rough Terrain Scissor Lift working height 9.9 metres

Skyjack’s Compact Series Rough Terrain Scissor Lifts offer the same industry leading rugged, robust, and reliable scissor lifts that have made Skyjack famous. The SJ 6826RT and SJ6832RT both come equipped with an exclusive cross over symmetrical 4WD system for superior traction and are powered by a Kubota diesel engine.
Featuring up to 50% gradeability, these machines can meet the needs of the most challenging job site terrain.

Standard features also include an easy to use 1,5 m roll out extension deck, which can be secured in multiple positions for increased platform space and improved reach capabilities. Both Compact models are drivable at full height with the roll out deck fully extended. A low stowed height is ideal for loading and unloading tools and materials. Consistent with Skyjack’s robust and reliable design features, the Compact Series Rough Terrain Scissor Lifts utilize Skyjack’s standard colour coded and numbered wiring system with analog based controls.

Please note that carriage is NOT included in the price of this machine. For a quote please call 01202 233202 or email:[email protected]


  • Drivable at full height with roll out deck fully extended
  • Crossover symmetrical 4WD
  • Multiple wet disc spring applied hydraulic release brakes
  • 1.52 m Roll out extension deck
  • 24hp Kubota Diesel engine
  • 90° Swing out engine tray
  • Relay-based control system
  • SKYCODEDTM Colour coded and numbered
  • wiring system
  • Up to 50% Gradeability
  • Foam-filled grip lug tyres
  • Wiring for AC outlet on platform
  • Tilt alarm with drive & lift cut-out
  • Overload sensing system
  • Lowering warning system
  • Operator horn
  • Hinged railing system
  • Full height spring hinged gate at rear of unit
  • Lanyard attachment point
  • Scissor guards
  • Forklift pockets and tie down/lift lugs
  • Independent/auto leveling outriggers
  • Telematics ready


  • Working height 9.9 metres
  • Platform height 7.9 metres
  • Lowered platform height 1.2 metres
  • Width 1760mm x length 3350mm x 2510mm height (railings up), 1750mm (railings down)
  • 50% gradeability
  • Cage capacity 567kg
  • 4 persons maximum
  • Platform size 1420mm x 2400mm
  • Extension deck roll out 1520mm
  • Travel speed lowered 6.1km/hour
  • Travel speed raised 0.6km/hour
  • Turning radius inside 1520mm
  • Turning radius outside 3960mm
  • Lift time 36 seconds
  • Weight 3500kg
