SkyJack SJ 46AJ Articulating Boom Lift

SkyJack SJ 46AJ Articulating Boom Lift Product code: SKJ1017 £45889.00  Inc. VAT and mainland UK delivery
Ask a Question
Enter your details and we will get back to you

Product Information

SkyJack logo

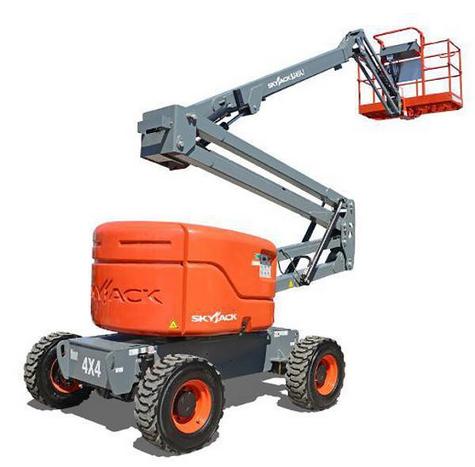

SkyJack SJ 46AJ Articulating Boom Lift working height 16.15 metres

Skyjack’s new A-SERIES Articulating Boom has been engineered utilizing many of Skyjack’s robust and reliable design features. The SJ 46AJ features an industry leading, standard equipped, 360 degree continuous turret rotation. Zero tail swing compliments the turret design allowing for flexible operation in tight locations.

Superior positive traction and terrainability is provided by the axle based 4WD used in many of Skyjack product designs, which accounts for a proven low maintenance, rugged and reliable drive train. The AJ’s are equipped with a rear axle hydraulic differential lock/unlock switch allowing the operator to lock the rear differential when negotiating rough terrain. The unlocked position improves turning radius and reduces tire marks on hard surfaces. Rounding out some of the other key features include; direction sensing drive and steer controls, true vertical rise with riser function which prevents drifting forward or backwards, analog based controls and Skyjack’s standard color coded and numbered wiring system.

Please note that carriage is NOT included in the price of this machine. For a quote please call 01202 233202 or email:[email protected]


  • Drivable at full height
  • Axle based 4WD
  • Operator controlled locking rear differential and limited slip front differential
  • Oscillating axle
  • Driveable at full height
  • Wet disc SAHR brakes (rear axle)
  • 48hp Deutz diesel engine
  • Swing out engine tray
  • Swing up cowlings
  • 360º continuous turret rotation
  • Direction sensing drive and steer controls
  • Proportional controls
  • 315/55 D20 grip lug foam-filled tyres
  • 50% gradeability
  • Solid rubber, non-marking tyres
  • Tilt alarm with drive cut-out
  • Wiring for AC outlet at platform
  • Overload sensing system
  • Lanyard attachment points
  • Operator horn
  • Hour meter
  • Modular platform railing system
  • Tie-down/lifting lugs
  • Spring hinged gate
  • Relay based control system
  • Colour coded and numbered wiring system


  • Working height 16.15 metres
  • Platform height 14.15 metres
  • Horizontal reach 7.68 metres
  • Up and over height 7.63m
  • Stowed width 2.24m
  • Stowed height 2.07m
  • Stowed length 6.5m
  • Tailswing zero
  • Wheelbase 2.03m
  • Ground clearance 0.4m
  • Rotation 360º continuous
  • Platform rotation 180º
  • Jib length 1.42m
  • Jib range +/- 70º/75º
  • 45% gradeability
  • Cage capacity 227kg
  • 2 persons maximum
  • Platform size 0.76m x 1.83m
  • Travel speed (high speed) 7.7km/hour
  • Turning radius inside 248m
  • Turning radius outside 5.15m
  • Weight 6981kg
