SkyJack SJ12 12ft. Vertical Mast Lift Self Propelled

Discontinued!
Ask a Question
Enter your details and we will get back to you

Product Information

SkyJack logo

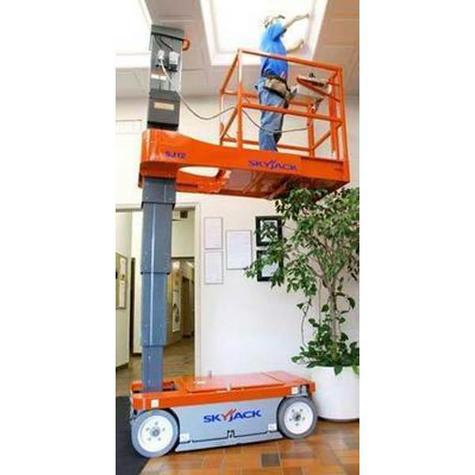

SkyJack SJ12 Self Propelled Mast Lift working height 5.48 metres

Skyjack has established itself as an industry leader providing the most robust and reliable aerial work platforms. Skyjack’s new self propelled vertical mast lift is no different, utilizing the same design philosophy while providing a compact footprint, superior maneuverability and a working height of 5,7 m. When operating in tight workspaces, a high degree steer angle allows for superior functionality and flexibility by offering zero inside turning radius.

The SJ 12 features a 0,41 m traversing platform, providing increased access and the ability to reach over potential obstacles. A unique slide away platform provides easy access to components, when raised or in the stowed position. Skyjack’s standard colour coded and numbered wiring system with hard-wired relay based controls help to ensure the new SJ 12 lives up to Skyjack’s leading reputation for quality and serviceability.

Features
  • Drivable at full height
  • Variable speed, front two wheel hydraulic drive
  • Zero inside turning radius
  • Dual holding brakes
  • Proportional controls
  • 0,41 m Traversing platform
  • 24V DC power source
  • Low voltage battery protection
  • 30% gradeability
  • Solid rubber, non-marking tyres
  • Pothole protection system
  • Wiring for AC outlet at platform
  • 2.5m/s wind rating (SJ12 only)
  • Tilt alarm with drive & lift cut-out
  • All motion audible alarm
  • Lanyard attachment points
  • Operator horn
  • Lift rings/tie downs
  • Full height spring hinged gate
  • Relay based control system
  • Colour coded and numbered wiring system
Specifications
  • Working height 5.48 metres
  • Platform height 3.65 metres
  • Lowered platform height 0.45 metres
  • Width 0.76m x length 1.37m x 1.76m height
  • 30% gradeability
  • Cage capacity 227
  • 2 persons maximum
  • Platform size 0.67m x 0.97m
  • Travel speed lowered 4km/hour
  • Travel speed raised 0.8km/hour
  • Turning radius inside 0m
  • Turning radius outside 1.42m
  • Weight 782kg
